Exploded View

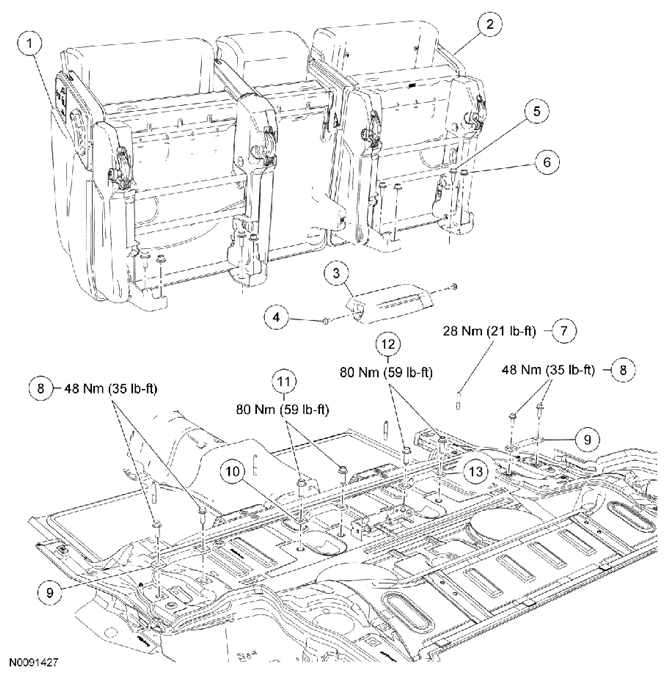

Fig 1: Exploded View Of Seat With Torque Specifications - 60/40 Bench Seat

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Service Part Number	Description	Torque	Material Name	Notes
1	-	60 percent seat assembly	-	-	-
2	-	40 percent seat assembly	-	-	-
3	04752	Console bracket cover	-	-	-
4	W707486	Screw (2 required)	-	-	-
5	W708175	Seat-to-floor bolt (4 required)	Refer to the procedure	-	-
6	N802068	Seat-to-floor nut (4 required)	Refer to the procedure	-	-
7	W708166	Floor stud (4 required)	28 Nm (21 lb-ft)	-	-
8	W505275	Outboard striker-to-floor bolts	48 Nm (35 lb-ft)	-	-
9	600A16	Outboard striker	-	-	-
10	600A16	Left Hand (LH) inboard striker	-	-	-
11	W714306	Inboard striker-to-floor bolts	80 Nm (59 lb-ft)	-	-
12	W714306	Inboard striker-to-floor bolts	80 Nm (59 lb-ft)	-	-
13	600A16	Right Hand (RH) inboard striker	-	-	-

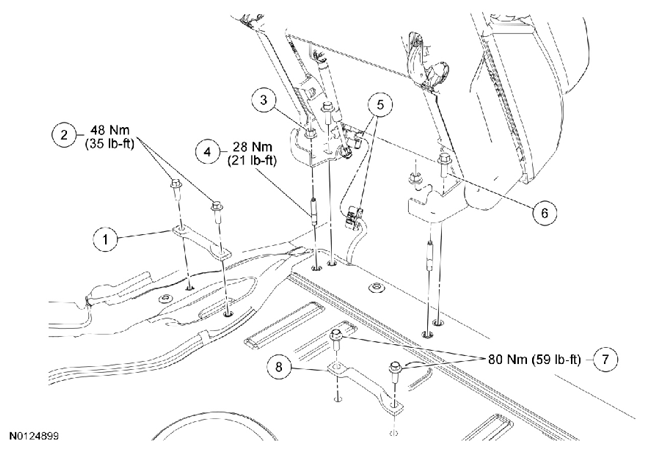

Figure 2: 40/40 Seats

NOTE: Left Hand (LH) seat shown in illustration, Right Hand (RH) similar.

Fig 2: Exploded View Of Seat With Torque Specifications - 40/40 Seats

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Service Part Number	Description	Torque	Material Name	Notes
1	613A64	Left Hand (LH)/Right Hand (RH) seat, outboard striker	-	-	-
2	W505275	Outboard striker-to-floor bolts	48 Nm (35 lb-ft)	-	-
3	N802068	Seat-to-floor nut (2 required)	Refer to the procedure	-	-
4	W708166	Floor stud (2 required)	28 Nm (21 lb-ft)	-	-
5	Part of 14A005 / 14B687	Electrical connectors	-	-	-
6	W708175	Seat-to-floor bolt (2 required)	Refer to the procedure	-	-
7	W714306	Left Hand (LH) inboard striker-to-floor bolts (M14) (2 required)	80 Nm (59 lb-ft)	-	-
7	W505285	Right Hand (RH) inboard striker-to-floor bolts (M12) (2 required)	80 Nm (59 lb-ft)	-	-
8	613B96	Left Hand (LH)/ Right Hand (RH) seat, inboard striker (1 each required)	-	-	-
