Exploded View

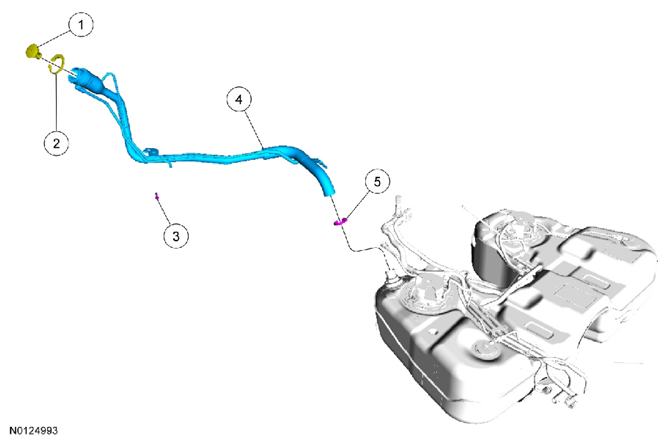

Fig 1: Identifying Fuel Tank Filler Pipe Assembly Component Location

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Service Part Number	Description	Torque	Material Name	Notes
1	9C268	Fuel tank filler pipe locking cap (optional)	-	-	-
2	9K072	Fuel tank filler pipe information bezel	-	-	-
3	W505255	Fuel tank filler pipe bolt 9 Nm (80	lb-in)	-	-
4	9034	Fuel tank filler pipe assembly	-	-	-
5	W525936	Fuel tank filler pipe hose clamp 3 Nm (27	lb-in)	-	-

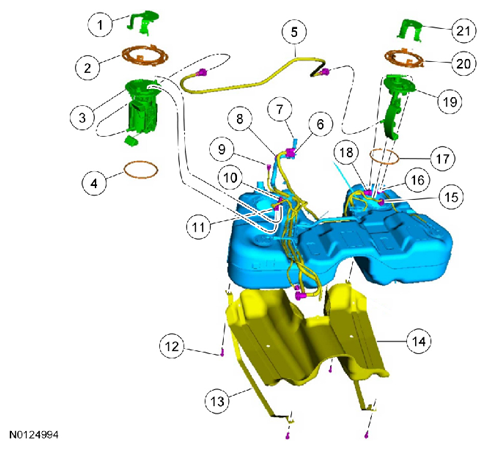

Fig 2: Exploded View Of Fuel Tank Assembly

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Service Part Number	Description	Torque	Material Name	Notes
1	9B007	Fuel tank shield	-	-	-
2	9C385	Fuel Pump (FP) assembly lock ring	-	-	-
3	9H307	Fuel Pump (FP) assembly	-	-	-
4	9276	Fuel Pump (FP) assembly O-ring seal	-	-	-
5	9324	Internal fuel tube	-	-	-
6	-	Fuel tank wire harness electrical connector (part of 14407)	-	-	-
7	9A089	Fresh air hose vent cap	-	-	-
8	-	Evaporative Emission (EVAP) canister fresh air hose pin-type retainer (part of 9S321)	-	-	-
9	-	Fuel vapor tube assembly-to-fuel tank filler pipe recirculation tube quick connect coupling (part of 9C047)	-	-	-
10	-	Fuel tank jumper tube-to-Fuel Pump (FP) assembly quick connect coupling (part of 9J337)	-	-	-
11	-	Fuel Pump (FP) assembly electrical connector (part of 14407)	-	-	-
12	N811781	Fuel tank strap bolt (4 required) 35 Nm (26	lb-ft)	-	-
13	9055	Fuel tank strap (2 required)	-	-	-
14	9A031	Fuel tank heat shield	-	-	-
15	-	Fuel level sensor electrical connector (part of 14407)	-	-	-
16	-	Fuel vapor tube-to-fuel level sensor quick connect coupling (part of 9P860)	-	-	-
17	9276	Fuel level sensor O-ring seal	-	-	-
18	-	Fuel vapor tube assembly-to-fuel level sensor quick connect coupling (part of 9C047)	-	-	-
19	9275	Fuel level sensor	-	-	-
20	9C385	Fuel level sensor lock ring	-	-	-
21	9B007	Fuel tank shield	-	-	-
