Auxiliary Climate Control Assembly Connector - C3198
Auxiliary Climate Control Assembly Connector - C3198

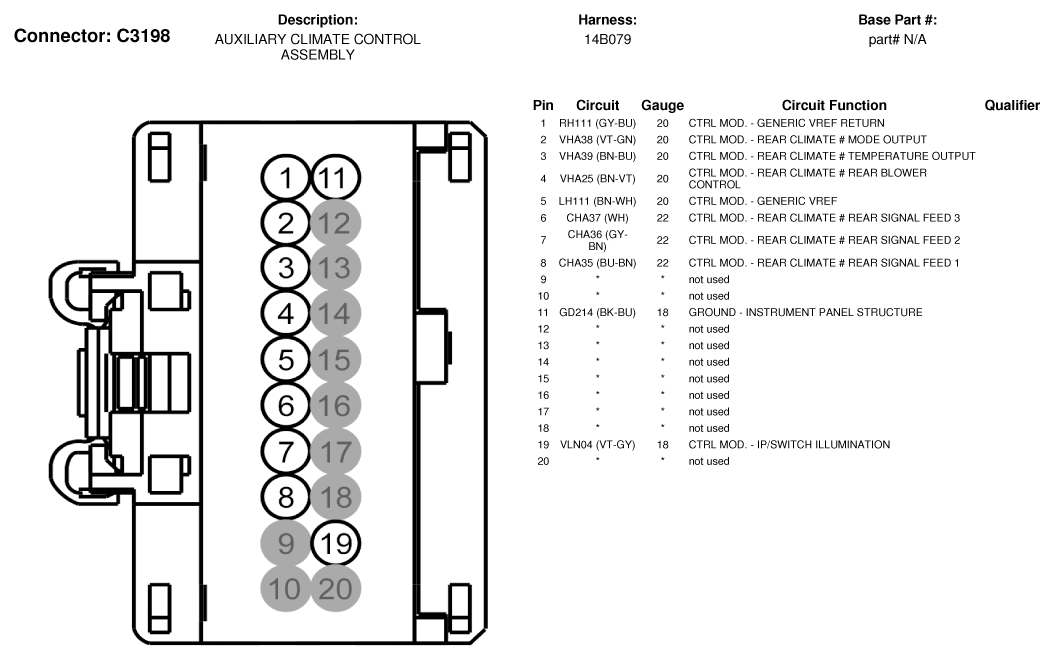

Fig 1: Auxiliary Climate Control Assembly Connector End View (C3198)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
