Console Rear Power Point Connector - C3064

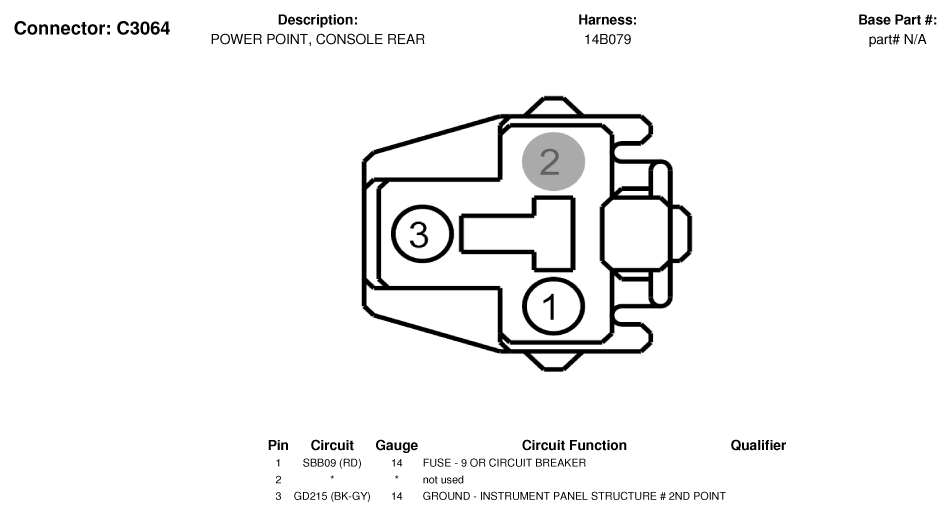

Fig 1: Console Rear Power Point Connector End View (C3064)
G07328149Courtesy of FORD MOTOR CO.
