Liftgate Latch Connector - C457
Liftgate Latch Connector - C457

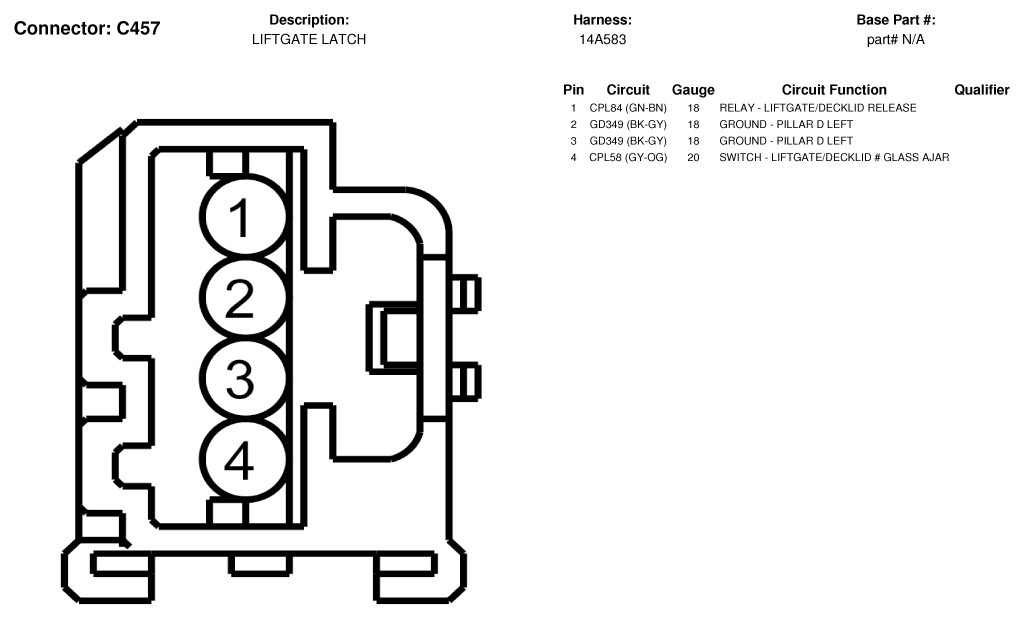

Fig 1: Liftgate Latch Connector End View (C457)
Courtesy of FORD MOTOR CO.
