Parking Aid Module Connector - C3267

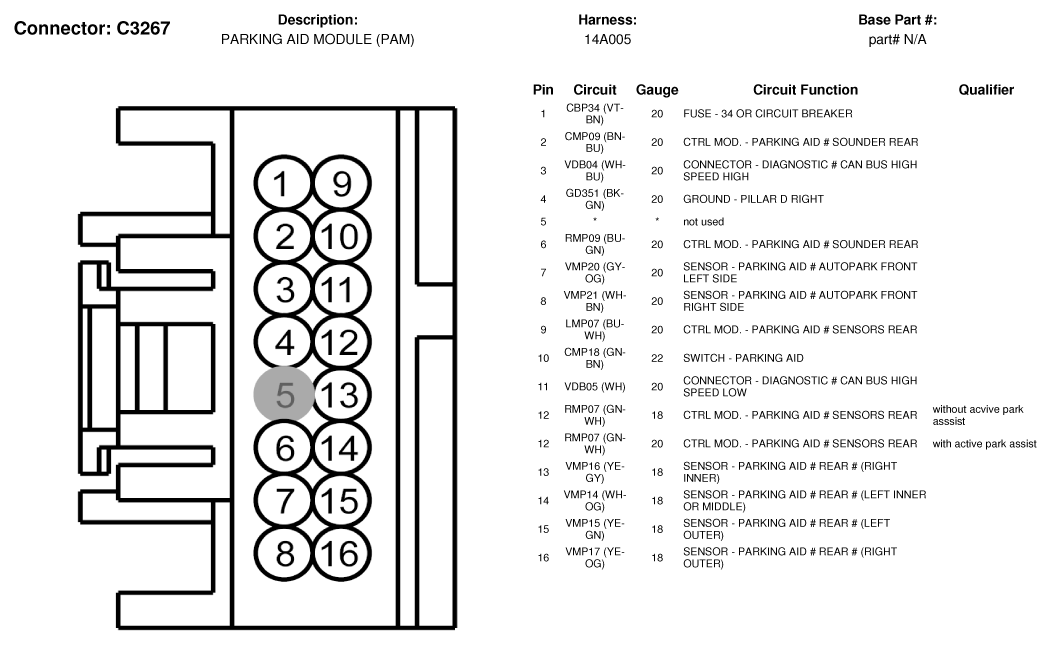

Fig 1: Parking Aid Module Connector End View (C3267)
G07328184Courtesy of FORD MOTOR CO.
