Transmission Case: Assembly

If the transfer shaft fluid dam and bearing race were removed during disassembly, assemble 205-153 (T80T-4000-W) and 307-583 and install a new transfer shaft fluid dam on 307-583 with 205-153 (T80T-4000-W).

Fig 1: Installing Transfer Shaft Fluid Dam On Special Tool
Courtesy of FORD MOTOR CO.
Using 205-153 (T80T-4000-W) and 307-583, install the transfer shaft fluid dam in the transaxle case.

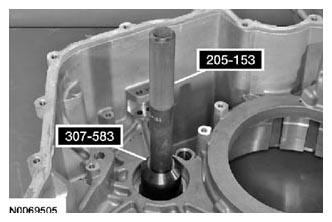

Fig 2: Installing Transfer Shaft Fluid Dam In Transaxle Case
Courtesy of FORD MOTOR CO.
Inspect the transfer shaft fluid dam to be sure it is seated evenly into the transaxle case.

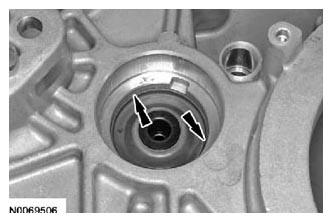

Fig 3: Locating Transfer Shaft Fluid Dam
Courtesy of FORD MOTOR CO.
Using 307-576, press the transfer shaft bearing cup in the transaxle case.

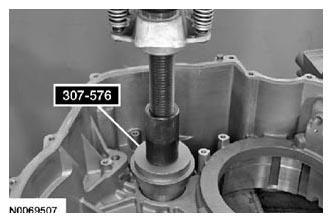

Fig 4: Pressing Transfer Shaft Bearing Cup In Transaxle Case Using 307-576
Courtesy of FORD MOTOR CO.
If removed, install a new differential bearing race on 307-576.

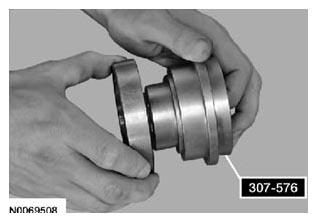

Fig 5: Installing New Differential Bearing Race On 307-576
Courtesy of FORD MOTOR CO.
Using 307-576, 307-541 and 204-029 (T77F-1176-A), press the differential bearing cup in the transaxle case.

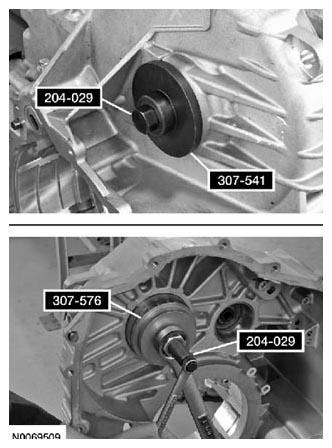

Fig 6: Pressing Differential Bearing Cup In Transaxle Case Using 307-576, 307-541 And 204-029 (T77F-1176-A)
Courtesy of FORD MOTOR CO.
Install the park pawl abutment and the pins.

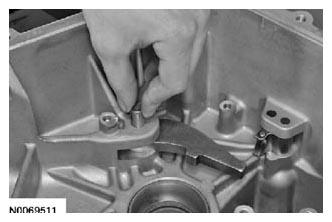

Fig 7: Installing Park Pawl Abutment And Pins
Courtesy of FORD MOTOR CO.
Install the park pawl and the pin.

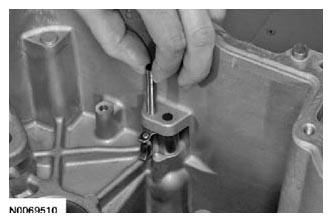

Fig 8: Installing Park Pawl And Pin
Courtesy of FORD MOTOR CO.
Install the park pawl spring.

Fig 9: Locating Park Pawl Spring
Courtesy of FORD MOTOR CO.

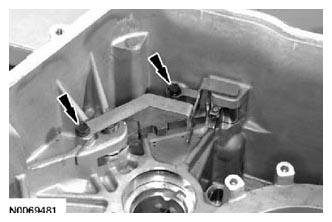

Install the park pawl pin retainer and the 2 bolts.
Tighten to 12 Nm (106 lb-in).

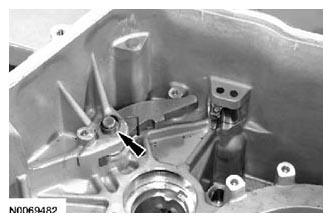

Fig 10: Locating Park Pawl Pin Retainer Bolts
Courtesy of FORD MOTOR CO.
Remove the torque converter housing differential and transfer shaft bearing races to select a new differential or transfer shaft shim. REFER to TORQUE CONVERTER HOUSING .
