Audio System_Navigation: Notes

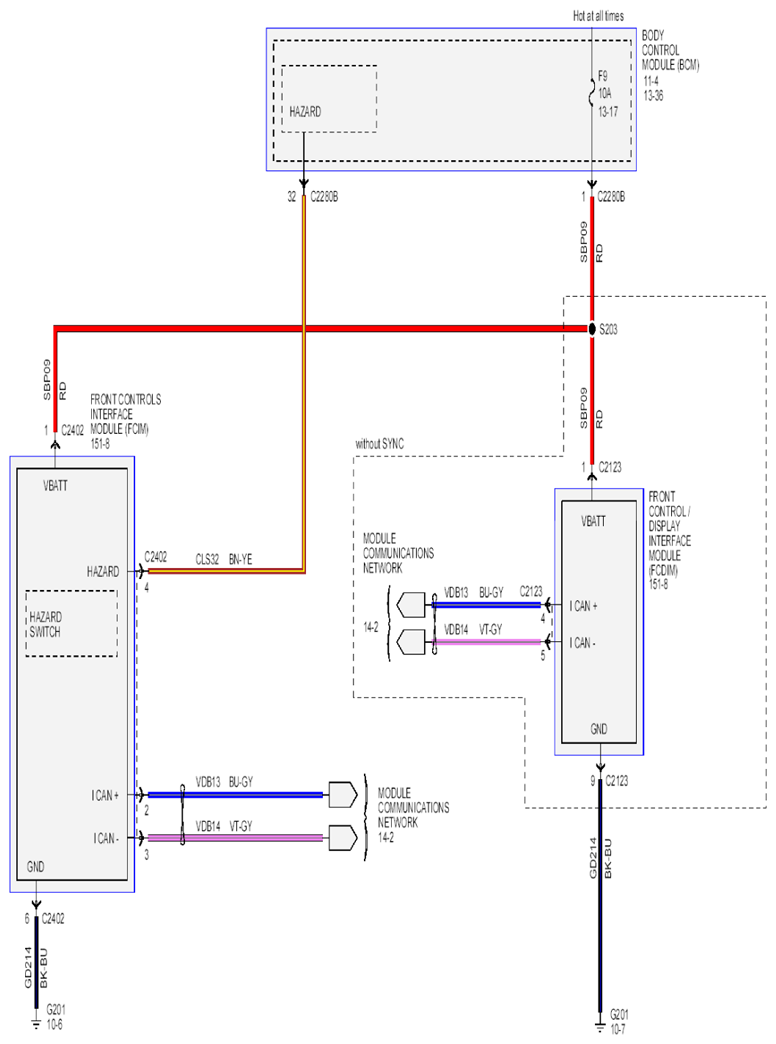

Fig 1: Audio System And Navigation Circuit Diagram (1 Of 3)
G07857541Courtesy of FORD MOTOR CO.
Fig 2: Audio System And Navigation Circuit Diagram (2 Of 3)
G07857542Courtesy of FORD MOTOR CO.
Fig 3: Audio System And Navigation Circuit Diagram (3 Of 3)
G07857543Courtesy of FORD MOTOR CO.
