Brake Shift Interlock Connector - C2008
Brake Shift Interlock Connector - C2008

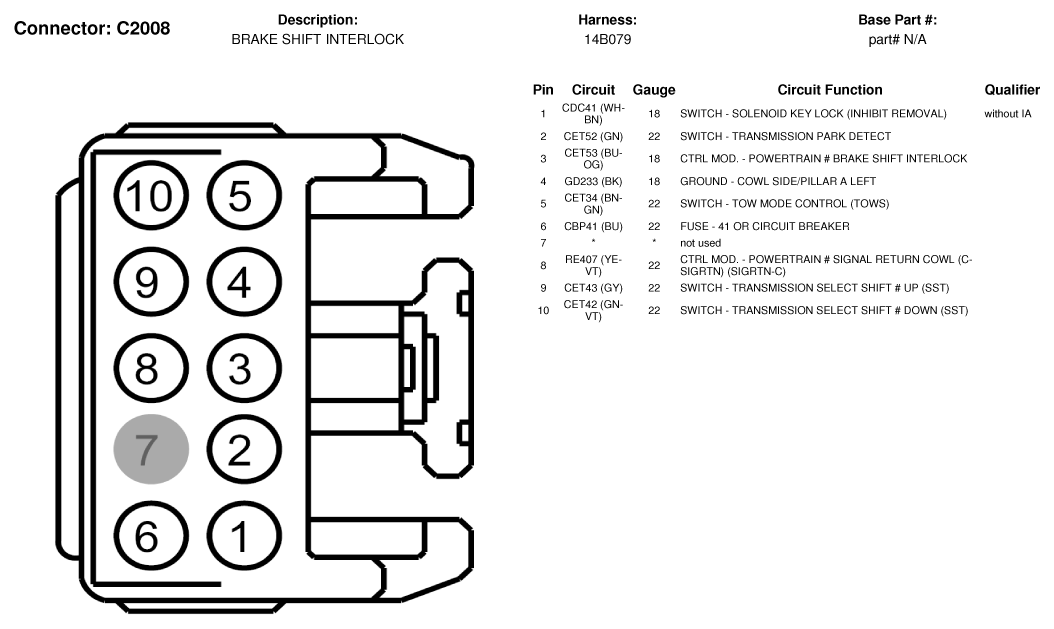

Fig 1: Brake Shift Interlock Connector End View (C2008)
Courtesy of FORD MOTOR CO.
