All Wheel Drive Module Connector - C4379

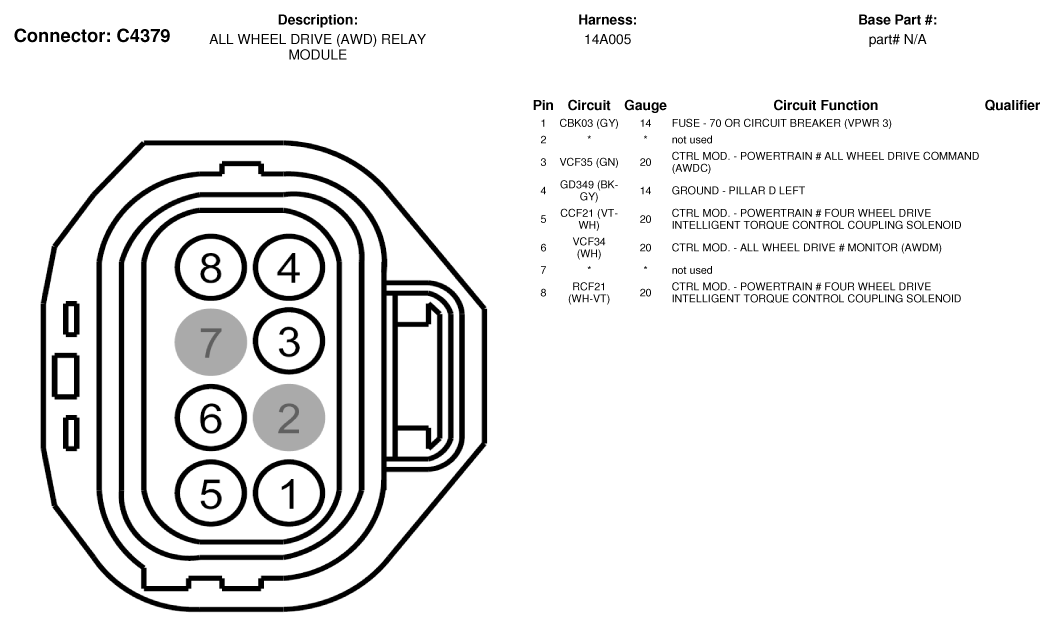

Fig 1: All Wheel Drive Module Connector End View (C4379)
G07328251Courtesy of FORD MOTOR CO.
