Center Stack Switch Assembly Connector - C2114

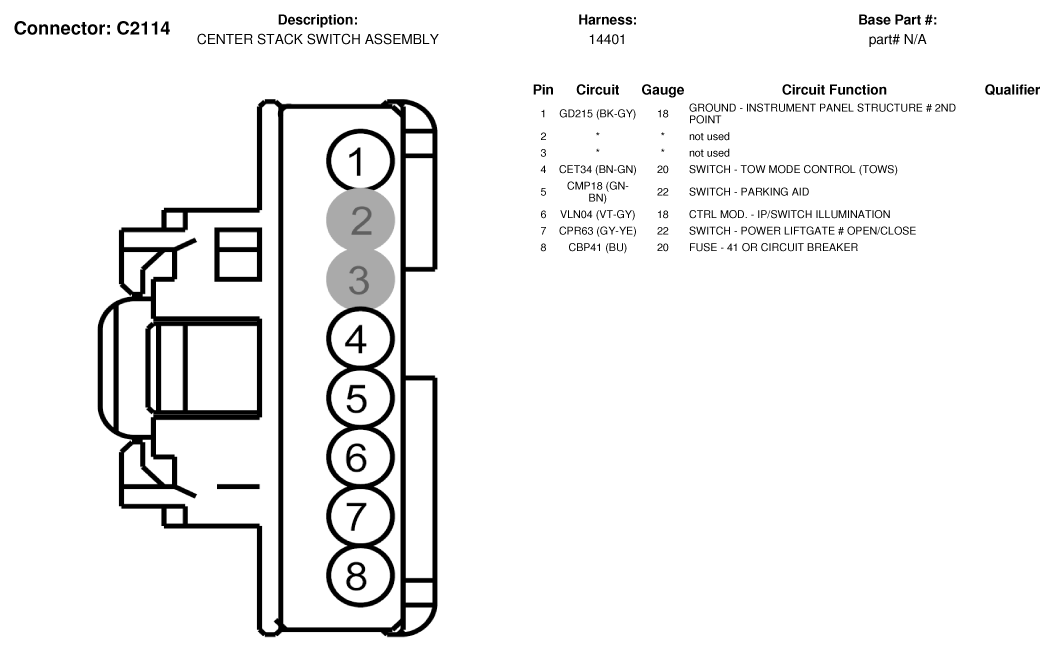

Fig 1: Center Stack Switch Assembly Connector End View (C2114)
G07328097Courtesy of FORD MOTOR CO.
