Head Up Display Module Connector - C2395

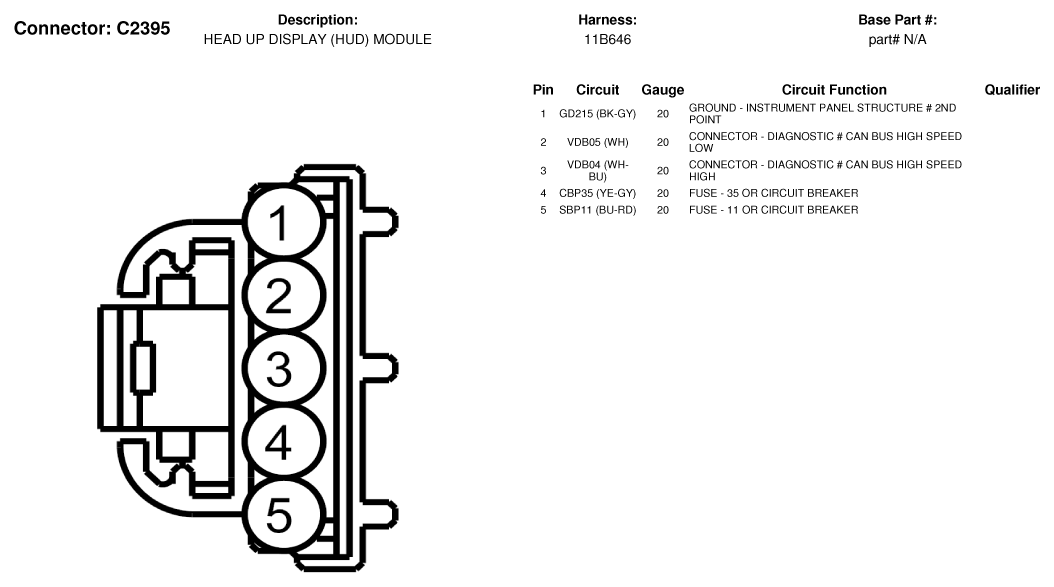

Fig 1: Head Up Display Module Connector End View (C2395)
G07328119Courtesy of FORD MOTOR CO.
