Keyless Entry Keypad Connector - C500

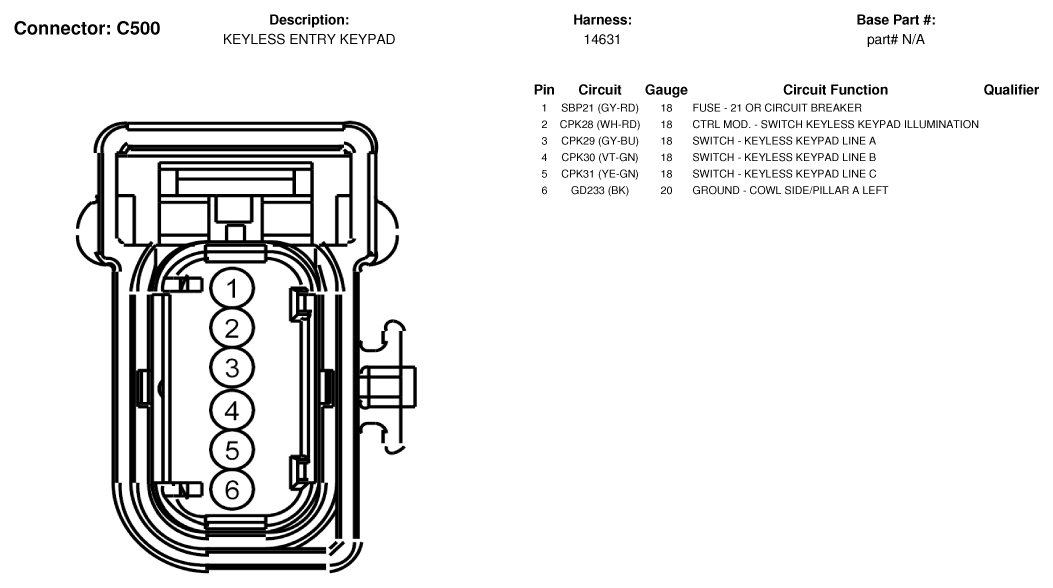

Fig 1: Keyless Entry Keypad Connector End View (C500)
G07327997Courtesy of FORD MOTOR CO.
