Right Side Safety Canopy Module Connector - C3329
Right Side Safety Canopy Module Connector - C3329

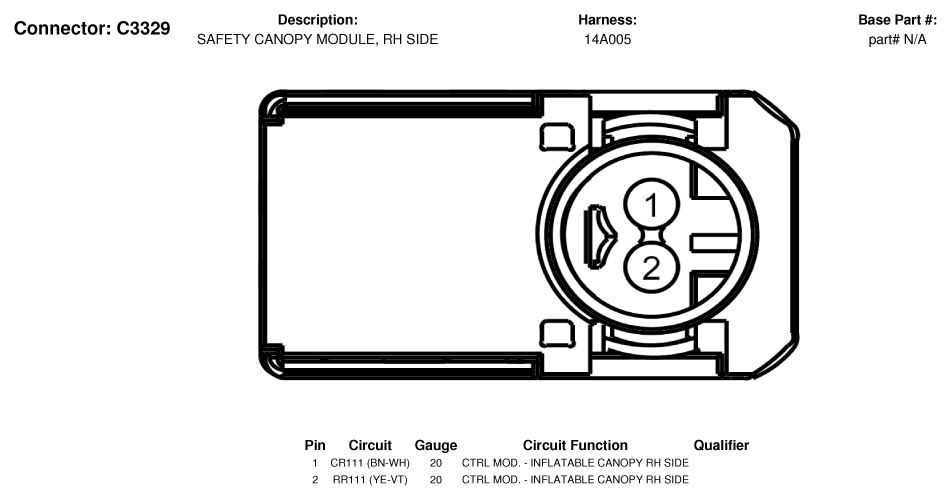

Fig 1: Right Side Safety Canopy Module Connector End View (C3329)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
