Exploded View

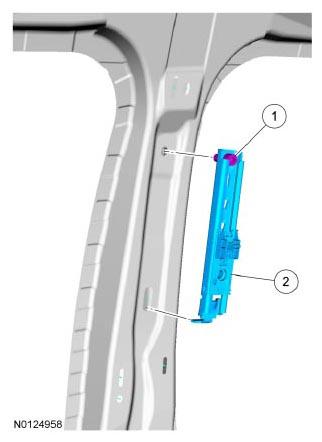

Fig 1: Exploded View Of Safety Belt Shoulder Height Adjuster

Courtesy of FORD MOTOR CO.

SAFETY BELT SHOULDER HEIGHT ADJUSTER PARTS DESCRIPTION CHART

Item	Service Part Number	Description	Torque
1	-	Safety belt shoulder height adjuster bolt (part of 602B82)	40 Nm (30 lb-ft)
2	602B82	Safety belt shoulder height adjuster	-
