Exploded View

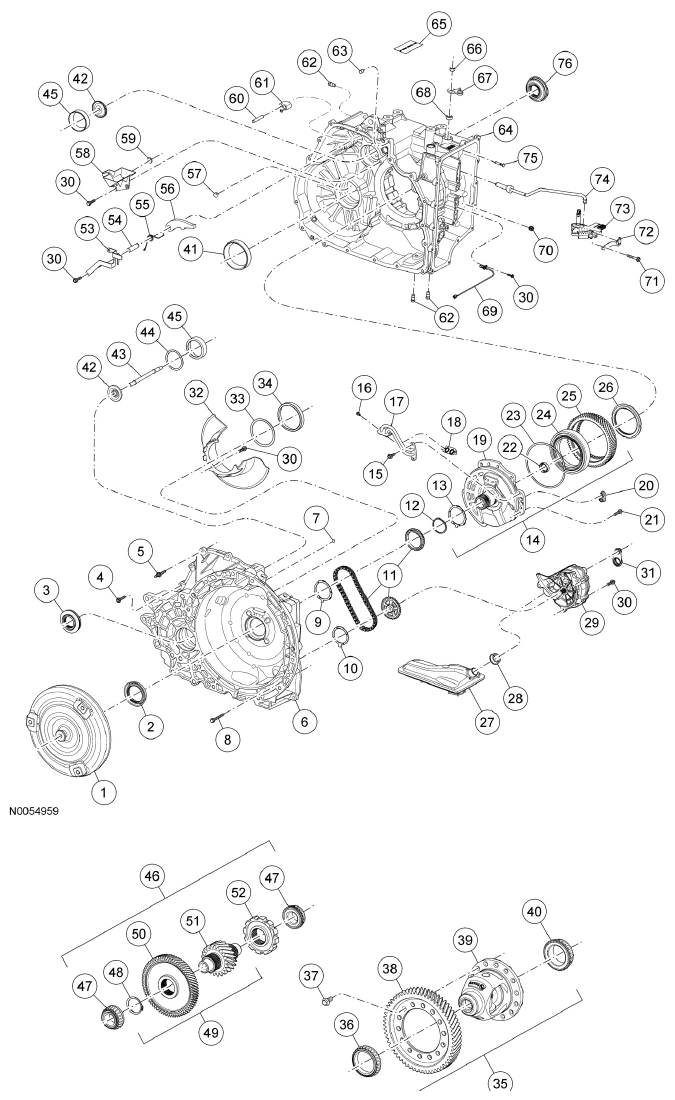

Fig 1: Exploded View Of Transaxle (1 Of 3)

Courtesy of FORD MOTOR CO.

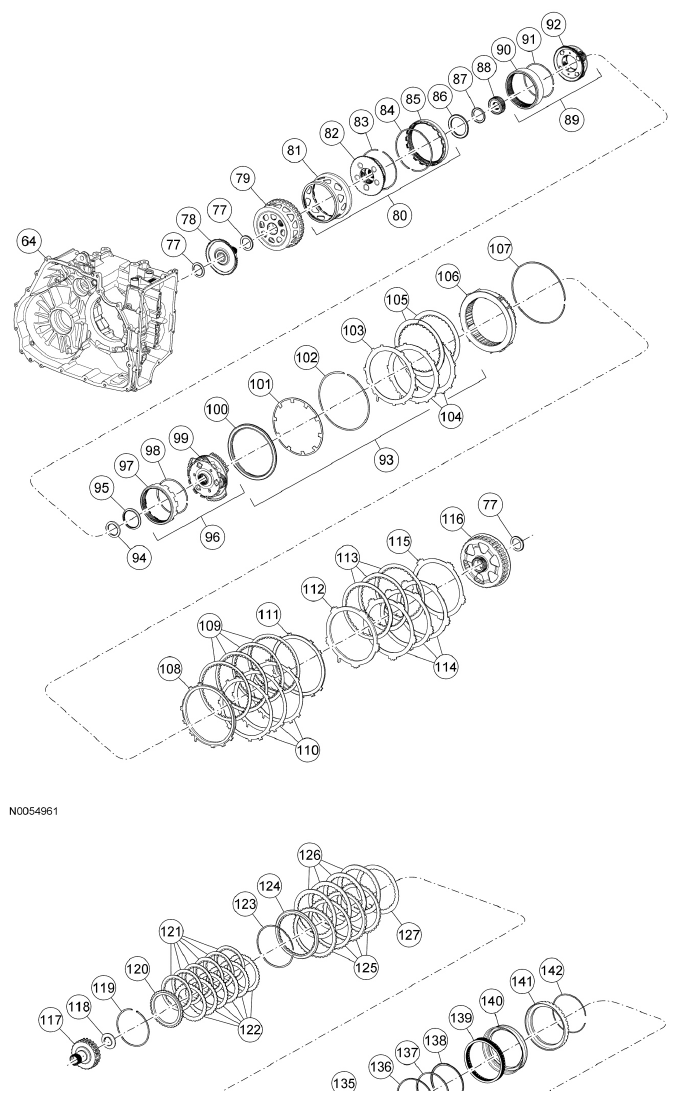

Fig 2: Exploded View Of Transaxle (2 Of 3)

Courtesy of FORD MOTOR CO.

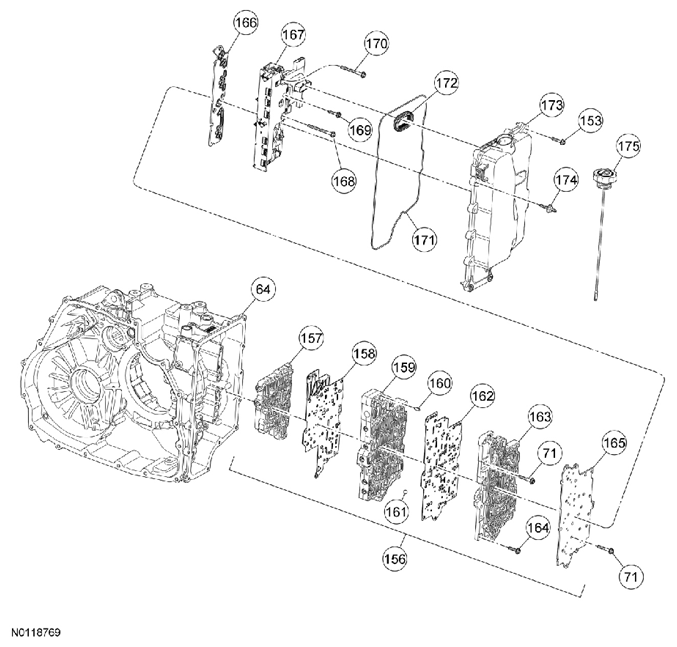

Fig 3: Exploded View Of Transaxle (3 Of 3)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Service Part Number	Description
1	7902	Torque converter assembly
2	7F401	Seal assembly - converter hub
3	1177	Seal assembly - transmission differential (front)
4	7J287	Bolt - M8 x 30 (converter housing)
5	W704941	Studbolt - M8 x 30 (converter housing)
6	7005	Torque converter housing
7	7H389	Plug - transmission orifice cup
8	W711931	Bolt - torque converter housing
9	7G099	Washer - drive sprocket thrust
10	7G273	Washer - driven sprocket support thrust
11	7G249	Sprocket and chain assembly - pump
12	7L323	Seal - support assembly-to-torque converter
13	7D014	Washer - stator support thrust
14	7A108	Support and gear assembly - stator
15	7J284	Bolt - hex-head stator support feed tube
16	7J330	Bolt - Torx® - head stator support feed tube
17	7N147	Transmission fluid feed tube assembly - stator support
18	7J246	Gasket - feed tube
19	7F363	Support assembly - torque converter reactor
20	7J246	Seal - stator support assembly
21	7J285	Bolt - M8 x 25
22	7048	Seal assembly - input shaft
23	7N281	Ring - input bearing retainer
24	7A452	Bearing assembly - main drive gear front
25	7F342	Gear - final drive input
26	7B364	Nut - bearing retainer
27	7A098	Filter - transmission fluid
28	7Z302	Seal - transmission fluid filter
29	7A103	Pump assembly - transmission fluid
30	7J283	Bolts - M6 x 25
31	7A248	Seal - pump
32	7978	Baffle - sump
33	4067	Shim - transmission differential bearing
34	4222	Cup - differential bearing
35	7F465	Differential and gear assembly
36	4221	Bearing - differential assembly
37	7J286	Bolt - M10 x 25
38	7F343	Gear - transmission final drive output
39	4207	Gear and case - differential assembly
40	4221	Bearing - differential assembly
41	4222	Cup - differential bearing
42	7L276	Fluid dams - transfer shaft tube
43	7A209	Tube - transfer shaft
44	7H367	Shim - transfer shaft roller bearing
45	7H344	Cups - transfer shaft roller bearing
46	7H348	Gear and bearing assembly - transfer shaft
47	7H338	Cone and roller assembly - transfer shaft bearing
48	7059	Ring - transmission final drive retaining
49	7H348	Gear assembly - transfer shaft
50	7H349	Gear - transfer shaft input
51	7H346	Gear - transfer shaft output
52	7A233	Gear - output shaft parking
53	7D419	Plate - parking rod guide
54	7D071	Shaft - parking pawl
55	7D070	Spring - parking pawl return
56	7A441	Pawl - parking brake
57	7H389	Plug - transmission case orifice
58	7J387	Reservoir - transmission fluid
59	7L280	Seal - transmission fluid reservoir
60	7D412	Pin - parking pawl abutment
61	7G101	Abutment - parking pawl actuator
62	7A010	Plugs - transmission drain
63	7B362	Pin - transmission case dowel
64	7005	Case
65	7G342	Tag - transmission service identification
66	W711892-S441	Nut - M10
67	7A256	Lever - manual control
68	7F337	Seal assembly - manual control shaft
69	7H103	Sensor assembly - Output Shaft Speed (OSS)
70	7N266	Seal - valve body
71	7J282	Bolts - M6 x 63
72	7E332	Spring assembly - manual valve detent
73	7H557	Sensor - Transmission Range (TR)
74	7A232	Rod assembly - park pawl actuator
75	7B210	Pin - manual control lever
76	1177	Seal - transmission differential
77	7M102	Bearing assembly - thrust
78	7B067	Hub assembly - planetary carrier
79	7D064	Sun gear and shell assembly - planetary carrier
80	7D491	Carrier and gear assembly - planetary
81	7M022	Shell - planetary carrier
82	7N470	Carrier - planetary gear
83	7L487	Ring - planetary carrier guide
84	7C122	Snap ring - planetary carrier
85	7G211	Gear - front planetary ring
86	7H375	Bearing and race assembly - forward planetary carrier thrust
87	7F241	Bearing and race assembly - forward planetary sun gear thrust
88	7G231	Gear - forward planetary sun
89	7L192	Carrier and ring gear assembly - forward planetary
90	7A153	Ring gear - planetary
91	7H318	Retainer - snap ring
92	7D055	Carrier assembly - forward planetary
93	-	Clutch assembly - forward
94	7C096	Bearing - forward planetary sun gear thrust (rear)
95	7G177	Bearing - front planetary carrier thrust
96	7D491	Gear and carrier assembly - front
97	7D392	Ring gear assembly - forward
98	7H361	Snap ring - forward planetary ring gear
99	7G226	Carrier - front planetary gear
100	7A262	Piston assembly - forward clutch
101	7B070	Spring - forward clutch piston return
102	7H365	Ring - forward clutch balance piston snap
103	7B070	Spring - forward clutch cushion
104	7B442	Plates - forward clutch (steel)
105	7B164	Plates - forward clutch (friction)
106	7A089	Plates - forward clutch (friction)
107	7B164	Plates - forward clutch (friction)
108	7B066	Plate - low reverse clutch pressure
109	7B164	Plates - low reverse clutch (friction)
110	7B442	Plates - low reverse clutch (steel)
111	7B066	Plate - low reverse clutch pressure
112	7B066	Plate - intermediate clutch pressure
113	7B164	Plates - intermediate clutch (friction)
114	7B442	Plates - intermediate clutch (steel)
115	7E085	Spring - intermediate clutch cushion
116	7A019	Sun gear and shell assembly - front planetary gear assembly
117	7H351	Hub assembly - direct clutch
118	7C096	Bearing - direct clutch hub thrust
119	7D483	Snap ring - Overdrive clutch
120	7B066	Plate - Overdrive pressure
121	7B164	Plates - Overdrive pressure (friction)
122	7B442	Plates - Overdrive pressure (steel)
123	7D483	Snap ring - direct clutch
124	7B066	Plate - direct clutch pressure
125	7B442	Plates - direct clutch (friction)
126	7B164	Plates - direct clutch (steel)
127	7E085	Spring - direct clutch wave
128	7C122	Snap ring - balance piston
129	7H360	Piston - balance
130	7F222	Spring - Overdrive clutch piston return
131	7A262	Piston - Overdrive clutch
132	7A548	Seal - Overdrive clutch piston outer (front)
133	7A548	Seal - Overdrive clutch piston outer (rear)
134	7A548	Seal - Overdrive clutch piston inner
135	7G384	Hub and shaft assembly - input direct and overdrive clutch
136	7A548	Seal - direct clutch piston outer
137	7C099	Seal - direct clutch piston inner (front)
138	7C099	Seal - direct clutch piston inner (rear)
139	7F235	Return spring assembly - direct clutch
140	7A262	Piston assembly - direct clutch
141	7F283	Cylinder - direct clutch piston
142	7C122	Snap ring - direct clutch piston cylinder
143	7C122	Snap ring - reverse clutch piston return spring
144	7B070	Spring - reverse clutch piston return
145	7D402	Piston - reverse clutch
146	7D483	Snap ring - intermediate clutch return spring
147	7F222	Spring - intermediate clutch piston return
148	7E005	Piston - intermediate clutch
149	7D019	Seals - transmission cover
150	7H026	Bearing - turbine shaft thrust
151	7223	Gasket - cover assembly
152	7222	Cover assembly
153	7J289	Bolts - M6 x 30
154	7M101	Sensor assembly - Turbine Shaft Speed (TSS)
155	7J356	Bolt - M6 x 25
156	7A100	Body assembly - main control valve
157	7A099	Body assembly - lower main control valve
158	7Z490	Plate assembly - lower valve body separator
159	7A091	Body - main control valve
160	7B431	Pin - transfer plate alignment
161	7E195	Plate - transfer
162	7Z490	Plate - transfer plate separator
163	7H195	Ball - check
164	7H195	Plate - transfer
165	7Z490	Cover assembly - main control valve body
166	7H200	Plate - solenoid filter
167	7Z369	Body assembly - solenoid
168	7J295	Bolt - M6 x 95
169	7J364	Bolt - M6 x 42
170	7J293	Bolt - M6 x 80
171	7F396	Gasket - main control cover
172	7B329	Seal - solenoid body-to-main control cover
173	7G004	Cover assembly - main control
174	W708442	Stud - hex flange
175	7A020	Indicator - transmission fluid level
