Automatic Transmission - 6F50 And 6F55
›
Removal And Installation
›
Solenoid Body Assembly
›
Exploded View
Exploded View

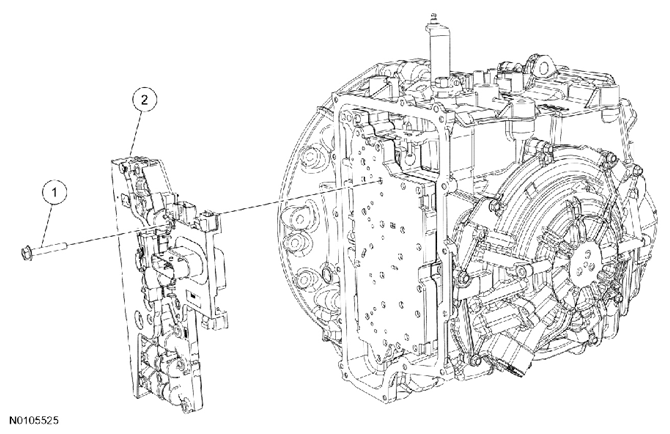

Fig 1: Exploded View Of Solenoid Body And Solenoid Body Bolt
Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART
Item
Service Part Number
Description
1
7J291
Solenoid body bolt (11 required)
2
7Z369
Solenoid body
