General Procedure
NOTE:
Refer to general specifications in the appropriate 303-01 engine section for the appropriate specification.
NOTE:
Piston and piston pins are a matched set and should not be interchanged.

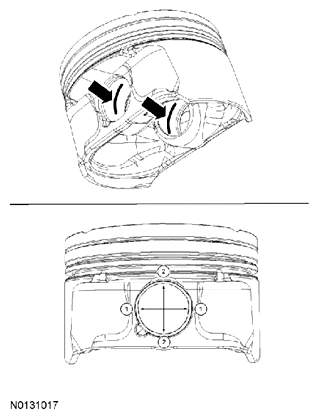

Measure the piston pin bore diameter in 2 directions in the middle of each side as shown. Verify the diameter is within specification.
