General Procedure

Inspect the sprockets for cracks and worn or chipped teeth.

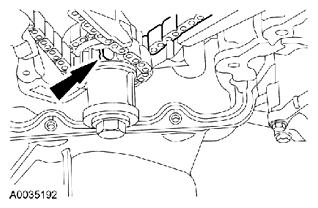

Fig 1: Locating Sprockets
G07420897Courtesy of FORD MOTOR CO.
