Backup Transceiver Connector - C3371

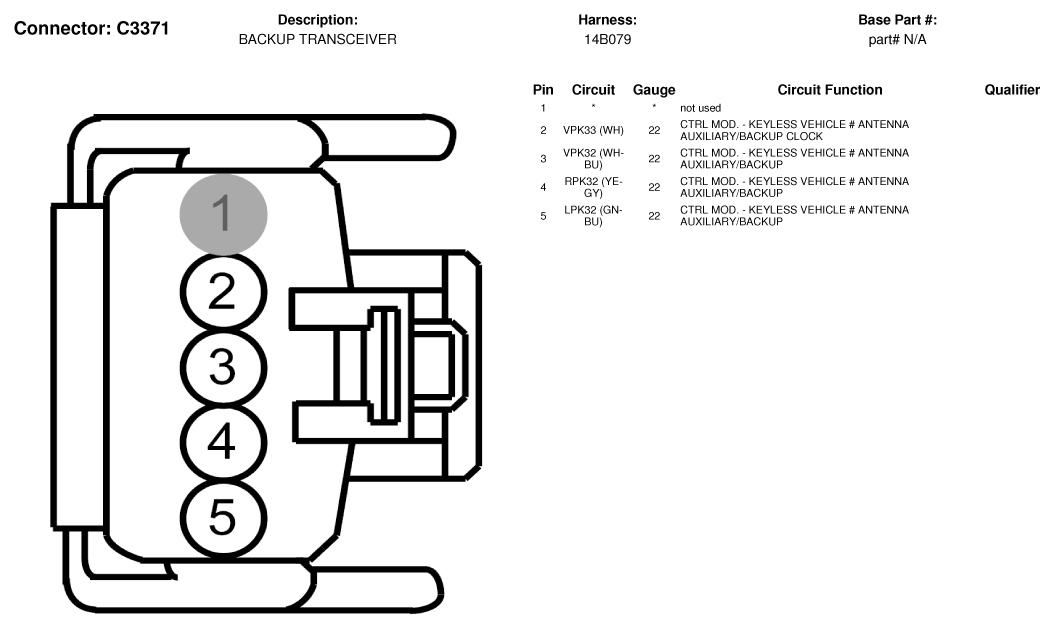

Fig 1: Backup Transceiver Connector End View (C3371)
G07328193Courtesy of FORD MOTOR CO.
