Component Location
1 Figure 1: PCM Location
ITEM DESCRIPTION CHART
| Item | Description |
|---|---|
| 1 | Powertrain Control Module (PCM) |

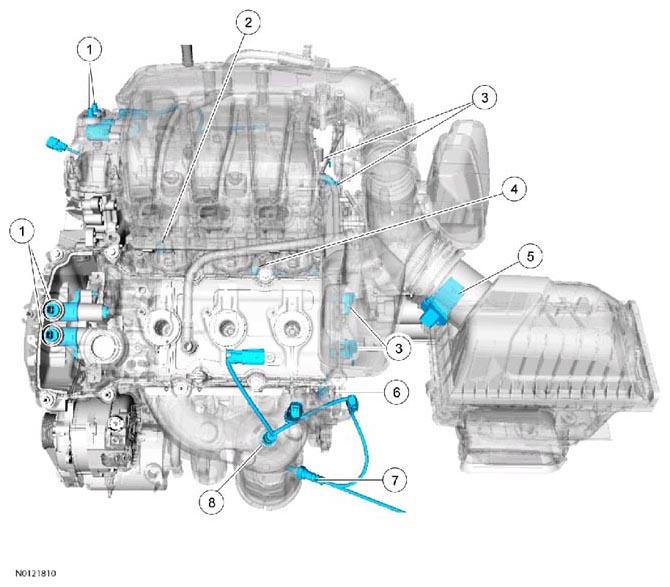

2 Figure 2: Sensor Locations
ITEM DESCRIPTION CHART
| Item | Description |
|---|---|
| 1 | Variable Camshaft Timing (VCT) oil control solenoids |
| 2 | Cylinder Head Temperature (CHT) sensor |
| 3 | Camshaft Position (CMP) sensor |
| 4 | Knock Sensor (KS) |
| 5 | Mass Air Flow (MAF) sensor |
| 6 | Crankshaft Position (CKP) sensor |
| 7 | Catalyst Monitor Sensor (CMS) |
| 8 | Heated Oxygen Sensor (HO2S) |
