Anti-Lock Brake System Module Connector - C135

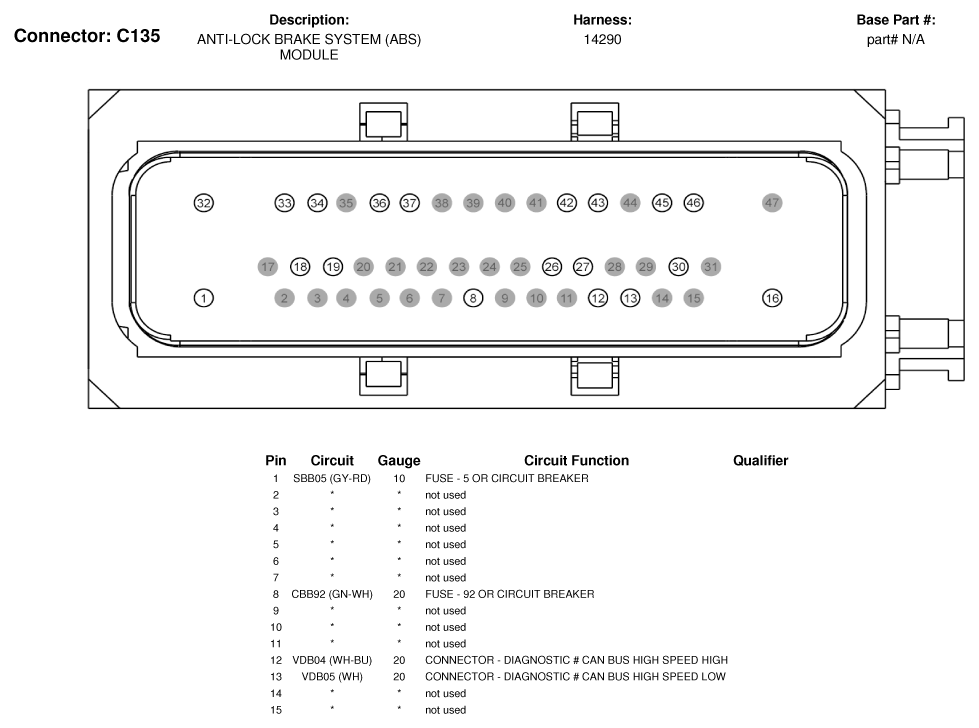

Fig 1: Anti-Lock Brake System Module Connector End View (C135) (1 Of 2)
G07327864Courtesy of FORD MOTOR CO.

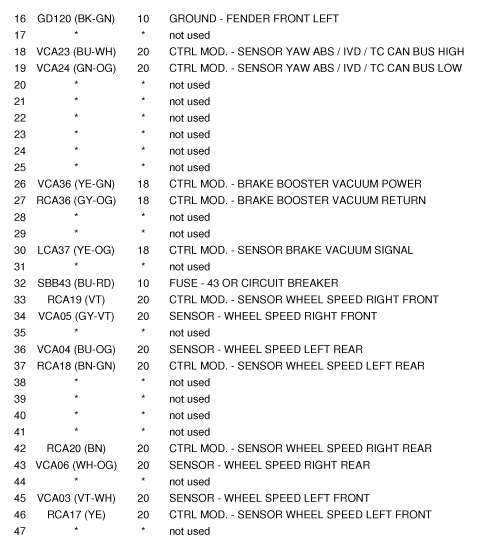

Fig 2: Anti-Lock Brake System Module Connector End View (C135) (2 Of 2)
G07327865Courtesy of FORD MOTOR CO.
