HVAC Control Components
WARNING: This page is about a different car, the 2013 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

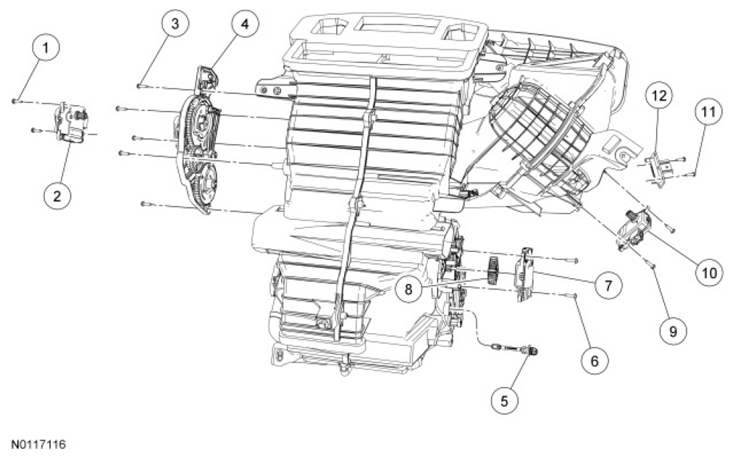

| Item | Part Number | Description |
|---|---|---|
| 1 | W506945 | Airflow mode door actuator screw (2 required) |
| 2 | 19E616 | Airflow mode door actuator |
| 3 | W506945 | Airflow mode door actuating assembly screw (5 required) |
| 4 | 19788 | Airflow mode door actuating assembly |
| 5 | 19C734 | Evaporator discharge air temperature sensor |
| 6 | W506945 | Temperature blend door actuator screw (2 required) |
| 7 | - | Temperature blend door actuator (part of 19788) |
| 8 | - | Temperature blend door actuator cam (part of 19788) |
| 9 | W506945 | Air inlet mode door actuator screw (2 required) |
| 10 | 19E616 | Air inlet mode door actuator |
| 11 | W506945 | Blower motor resistor screw (2 required) |
| 12 | 18591 | Blower motor resistor |
- Refer to the appropriate procedures and/or exploded views in this service information for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
