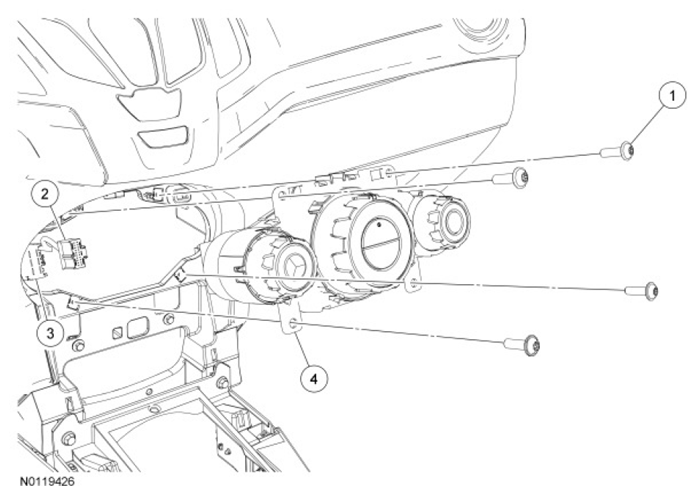

HVAC Housing
WARNING: This page is about a different car, the 2013 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W707628 |
HVAC module screw (4 required) |
| 2 |
- |
HVAC module electrical connector (part of 14401) |
| 3 |
- |
HVAC module blower motor switch electrical connector (part of 14401) |
| 4 |
18549 |
HVAC module (vehicles not equipped with A/C) |
| 4 |
19980 |
HVAC module (vehicles equipped with A/C) |
