Selector Lever: Installation

Install the selector lever and the 4 selector lever nuts.
- Tighten to 9 Nm (80 lb-in).

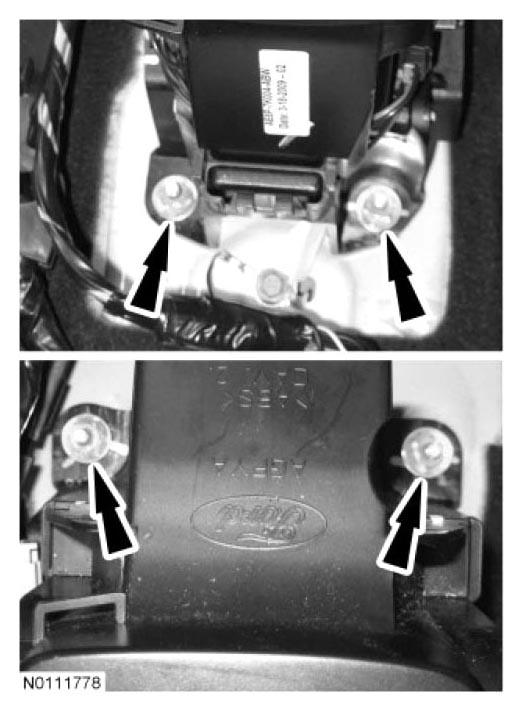

  Fig 1: Locating Selector Lever Nuts
  Courtesy of FORD MOTOR CO.

NOTE: When installing the selector lever cable, make sure the selector lever cable locking tabs are locked in place. Press the selector lever cable into the bracket and listen for the selector lever cable to click in place. Pull back on the selector lever cable to make sure it is locked into the selector lever cable bracket.

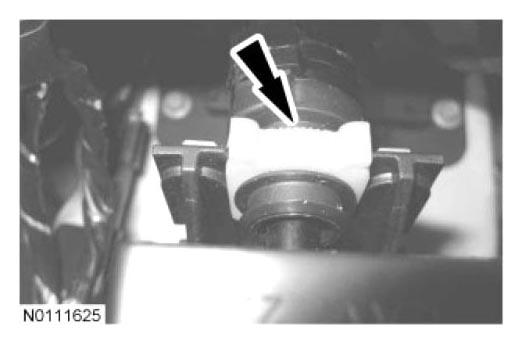

Fig 2: Locating Locking Tab On Selector Lever Cable Clip

Courtesy of FORD MOTOR CO.

Install the selector lever cable in the selector lever housing.

NOTE: Make sure the selector lever cable end is correctly installed onto the ball stud. Pull back on the selector lever cable end to make sure the selector lever cable end is correctly installed.

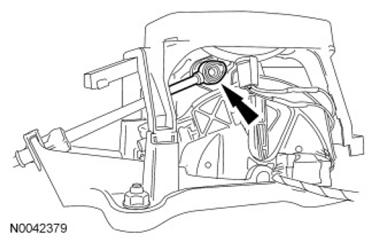

Fig 3: Locating Selector Lever Cable End With Selector Lever Ball Stud

Courtesy of FORD MOTOR CO.

Connect the selector lever cable end to the selector lever ball stud.
Connect the selector lever electrical connector.

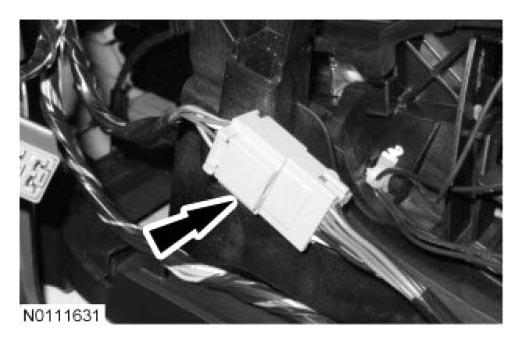

Fig 4: Locating Selecting Lever Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the RCM electrical connector.

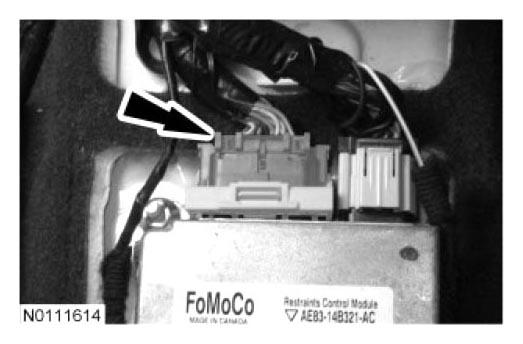

Fig 5: Locating Restraints Control Module (RCM) Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the wiring harness to the selector lever base.

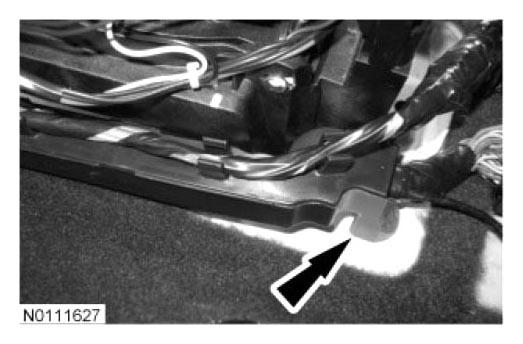

Fig 6: Locating Wiring Harness With Selector Lever Base
Courtesy of FORD MOTOR CO.
Install the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
Adjust the selector lever cable. For additional information, refer to SELECTOR LEVER CABLE ADJUSTMENT in this information.
