Introduction
›
Master window control switch
›
Schematic
Master window control switch: Schematic

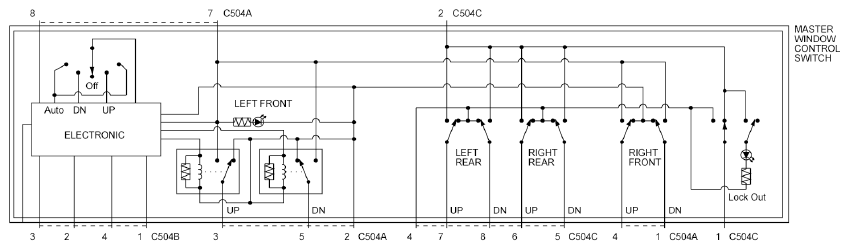

Fig 1: Master Window Control Switch - Schematic
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
