Driver Side Air Curtain Module Connector - C9018

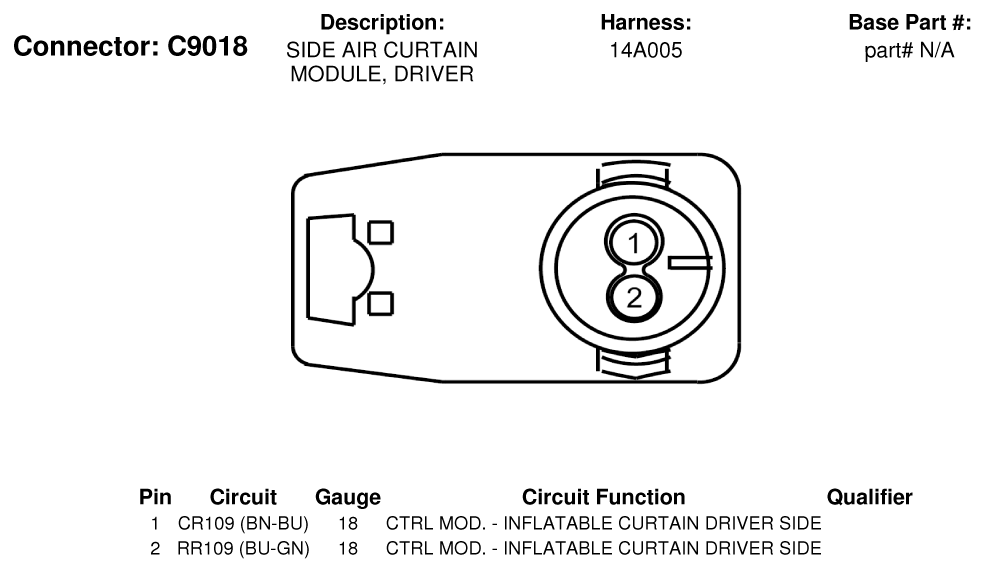

Fig 1: Driver Side Air Curtain Module Connector End View (C9018)
G07329273Courtesy of FORD MOTOR CO.
