Fuel Pump Control Module Connector - C3416

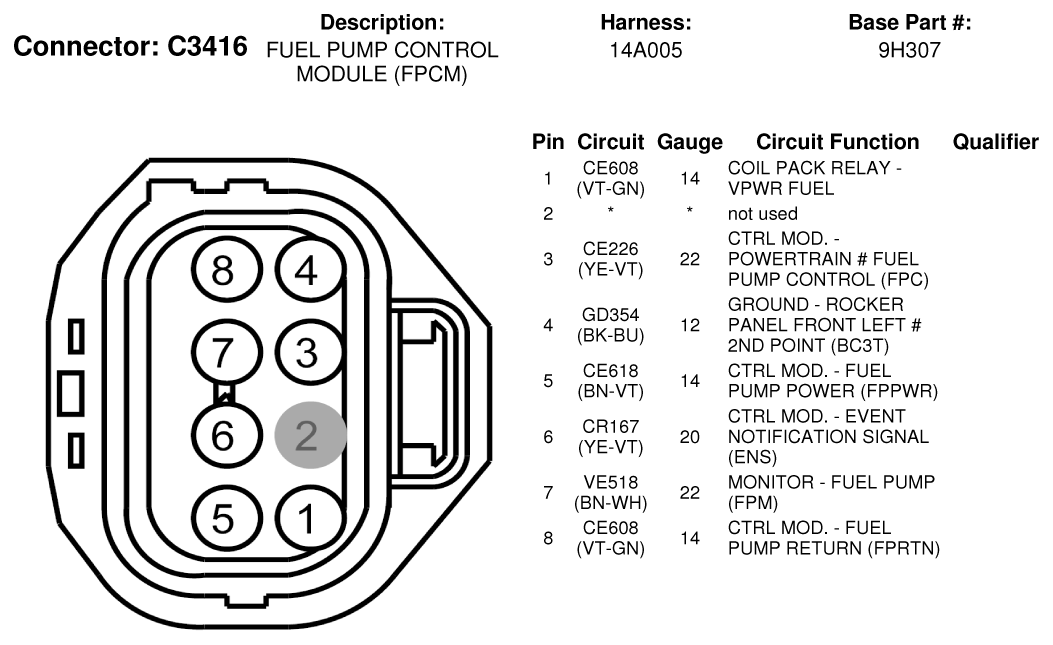

Fig 1: Fuel Pump Control Module Connector End View (C3416)
G07329254Courtesy of FORD MOTOR CO.
