Natural Vacuum Leak Detection Module Connector - C4375
Natural Vacuum Leak Detection Module Connector - C4375

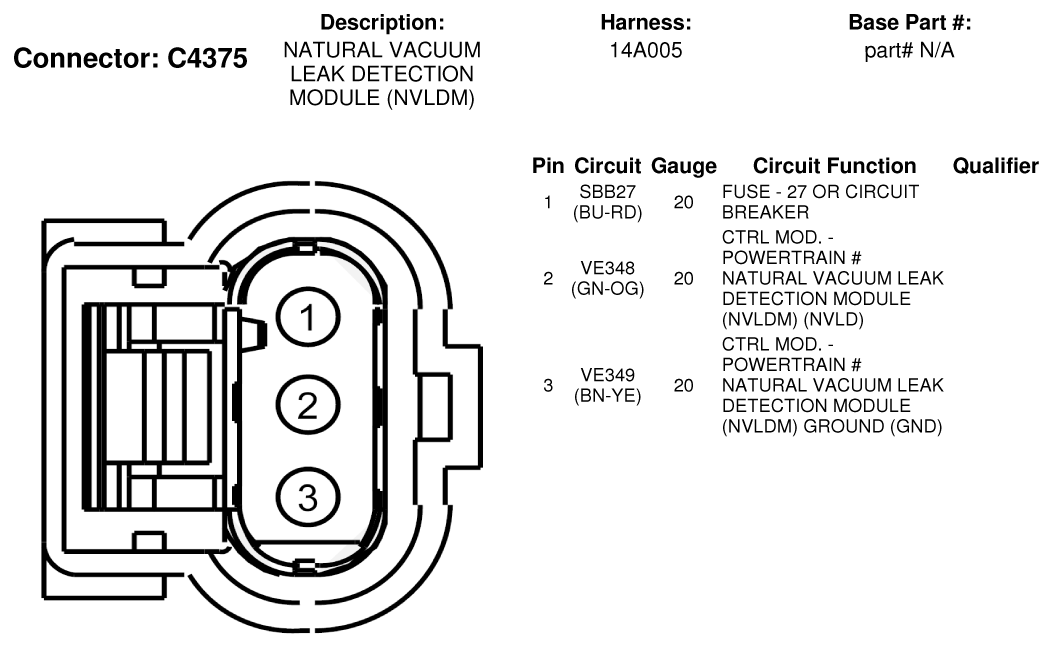

Fig 1: Natural Vacuum Leak Detection Module Connector End View (C4375)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
