Piston Pin Diameter

NOTE: Refer to the appropriate ENGINE - 1.6L for the specification.
  1. Measure the piston pin diameter in 2 directions at the points shown in illustration. Verify the diameter is within specification.

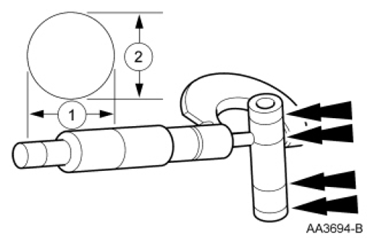

    Fig 1: Measuring Piston Pin Diameter
    G06939004Courtesy of FORD MOTOR CO.
