Valve Spring Installed Length

NOTE: Refer to the appropriate ENGINE - 1.6L for the specification.
  1. Measure the installed length of each valve spring.

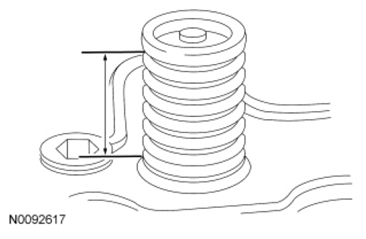

    Fig 1: Measuring Installed Length Of Valve Spring
    G06939024Courtesy of FORD MOTOR CO.
