Throttle Body: Notes

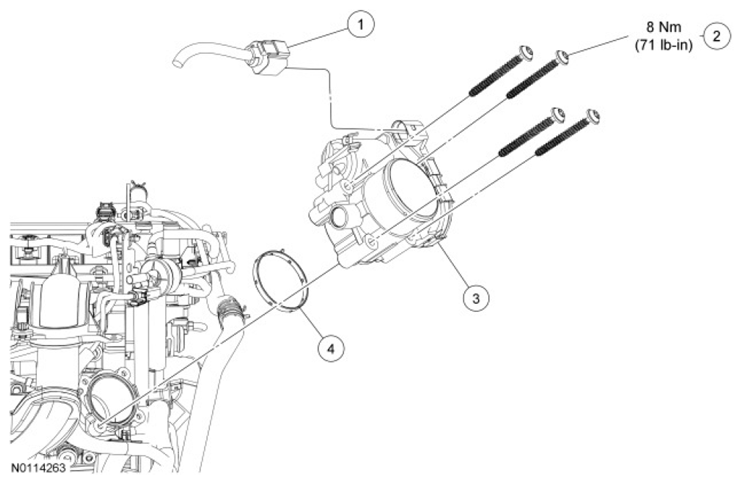

Fig 1: Exploded View Of Throttle Body With Torque Specifications

Courtesy of FORD MOTOR CO.

THROTTLE BODY COMPONENT DESCRIPTION CHART

Item	Part Number	Description
1	-	Electronic throttle control electrical connector (part of 12A581)
2	W708972	Throttle Body (TB) bolt (4 required)
3	9E926	TB
4	9E936	TB gasket
