Driver Air Bag Module: Notes
WARNING: This page is about a different car, the 2013 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

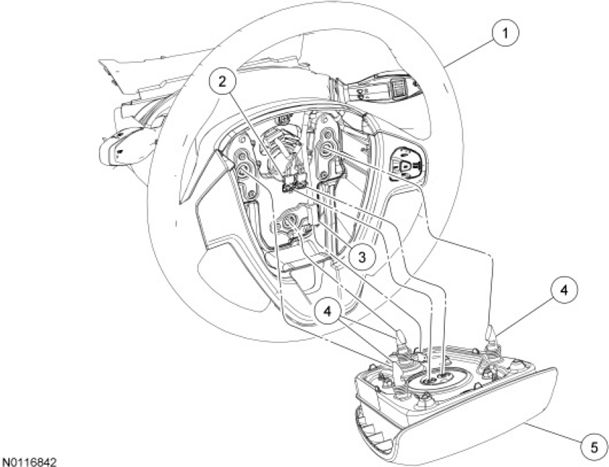

| Item |
Part Number |
Description |
| 1 |
3600 |
Steering wheel |
| 2 |
- |
Driver air bag module electrical connectors (2 required) (part of 14A664) |
| 3 |
- |
Horn switch electrical connector (part of 14A664) |
| 4 |
- |
Driver air bag module locking pins (part of 43B13) |
| 5 |
43B13 |
Driver air bag module |
