Front Impact Severity Sensor: Notes

WARNING: This page is about a different car, the 2013 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown in illustration, RH similar.

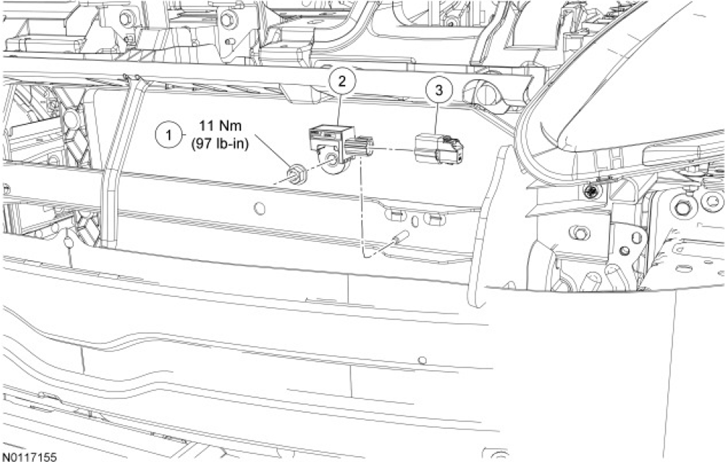

Fig 1: Front Impact Severity Sensor Related Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W700101	Front impact severity sensor nut
2	14B004	Front impact severity sensor
3	-	Electrical connector (part of 14K012)
