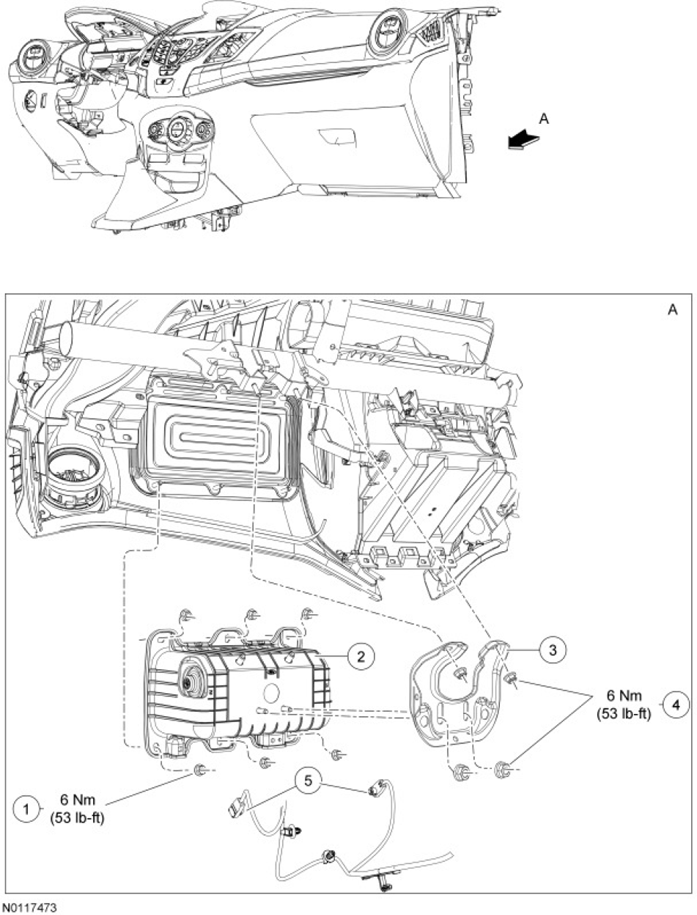

Passenger Air Bag Module: Notes
WARNING: This page is about a different car, the 2013 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W702147 |
Passenger air bag module nuts (6 required) |
| 2 |
044A74 |
Passenger air bag module assembly |
| 3 |
045F38 |
Passenger air bag module bracket |
| 4 |
W520101 |
Passenger air bag module bracket nuts (4 required) |
| 5 |
- |
Electrical connectors (part of 14401) |
