Restraints Control Module (RCM): Notes

WARNING: This page is about a different car, the 2013 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOLS

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS)
software with appropriate hardware, or equivalent scan tool

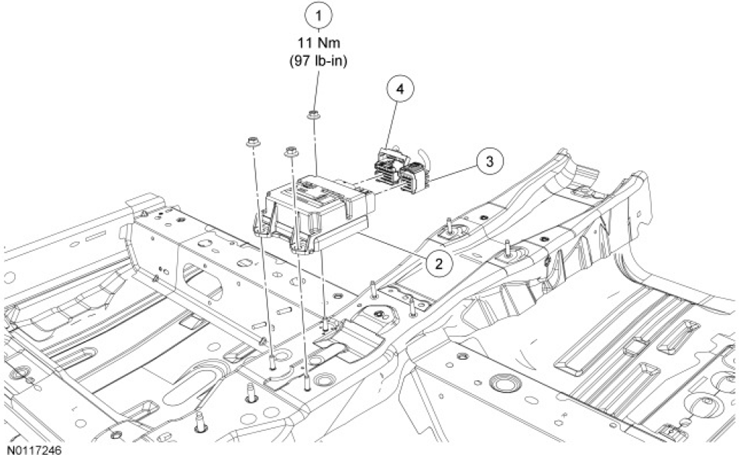

Fig 1: Restraints Control Module Related Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W707142	Restraints Control Module (RCM) nuts (3 required)
2	14B321	RCM
3	-	RCM small electrical connector (part of 14K024)
4	-	RCM large electrical connector (part of 14A005)
