Restraints Control Module (RCM): Removal

WARNING: This page is about a different car, the 2013 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: If a vehicle has been in a crash, inspect the restraints control module (RCM) and the impact sensor (if equipped) mounting areas for deformation. If damaged, restore the mounting areas to the original production configuration. A new RCM and sensors must be installed whether or not the air bags have deployed. Failure to follow these instructions may result in serious personal injury or death in a crash.
WARNING: Do not handle, move or change the original horizontal mounting position of the restraints control module (RCM) while the RCM is connected and the ignition switch is ON. Failure to follow this instruction may result in the accidental deployment of the Safety Canopy® and cause serious personal injury or death.
NOTE: The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition is ON.
NOTE: The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
NOTE: Carrying out Programmable Module Installation (PMI) will not enable the 911 assist option that is disabled. The RCM and Accessory Protocol Interface Module (APIM) must be configured correctly to fully support 911 assist functionality.
  1. When installing a new RCM, carry out the appropriate steps necessary for the Programmable Module Installation (PMI) procedure. For additional information, refer to MODULE CONFIGURATION .
  2. Depower the SRS. For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering  .
  3. Remove the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
  4. Slide the locking wedge back, press to release the locking tab and disconnect the small RCM electrical connector.
  5. Disconnect the large RCM electrical connector.
    1. Pinch the thumb tab and pivot the Connector Position Assurance (CPA) lever all the way back until it stops.
    2. Pull out and disconnect the RCM electrical connector.

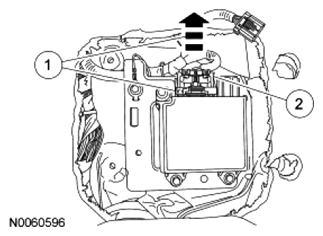

    Fig 1: Disconnecting Large RCM Electrical Connector
    G06780875Courtesy of FORD MOTOR CO.
  6. Remove the 3 nuts and the RCM.
