Side Air Bag Module: Notes
WARNING: This page is about a different car, the 2013 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

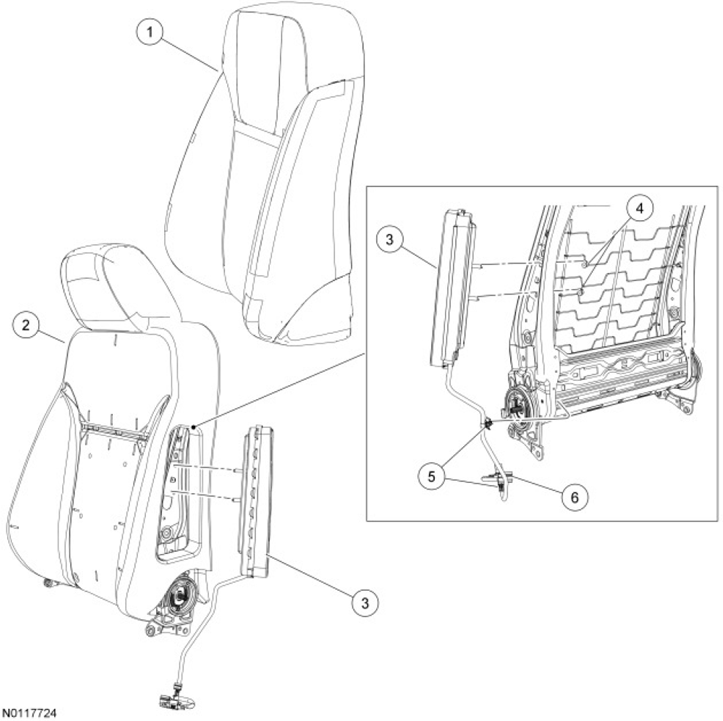

Driver side shown in illustration, passenger similar.
NOTE:
For side air bag module nut torque specification and tightening sequence, refer to the appropriate step in this procedure.
| Item | Part Number | Description |
|---|---|---|
| 1 | 64416 | Backrest cover and deployment chute |
| 2 | - | Seat backrest assembly |
| 3 | 611D11/LH 611D10/RH | Side air bag module |
| 4 | W790242 | Side air bag module nuts (2 required) |
| 5 | - | Wire harness retainers (part of 611D10/11) |
| 6 | - | Electrical connector (part of 611D10/11) |
