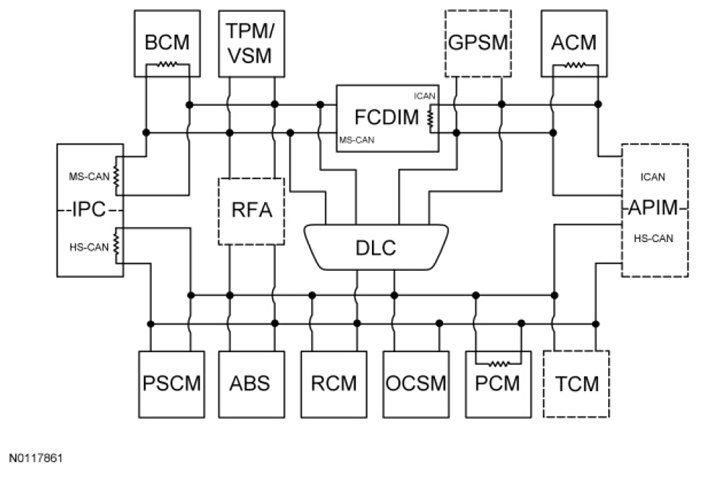

Network Topology
WARNING: This page is about a different car, the 2012 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
| Module Name | Network Type | Termination Module |
|---|---|---|
| ABS module | HS-CAN | No |
| Accessory Protocol Interface Module (APIM) (if equipped) | HS-CAN/I-CAN | No/No |
| Audio Front Control Module (ACM) | I-CAN | Yes |
| Body Control Module (BCM) | MS-CAN | Yes |
| Front Control/Display Interface Module (FCDIM) (MS-CAN/I-CAN gateway module) | MS-CAN/I-CAN | No/Yes |
| Global Positioning System Module (GPSM) (if equipped) | I-CAN | No |
| Instrument Panel Cluster (IPC) (HS-CAN/MS-CAN gateway module) | HS-CAN/MS-CAN | Yes/Yes |
| Occupant Classification System Module (OCSM) | HS-CAN | No |
| PCM | HS-CAN | Yes |
| Power Steering Control Module (PSCM) | HS-CAN | No |
| Remote Function Actuator (RFA) module (if equipped) | HS-CAN/MS-CAN | No/No |
| Restraints Control Module (RCM) | HS-CAN | No |
| Tire Pressure Monitor (TPM) /Vehicle Security Module (VSM) | MS-CAN | No |
| Transmission Control Module (TCM) (if equipped) | HS-CAN | No |
