Remote Function Actuator (RFA) Module: Notes
WARNING: This page is about a different car, the 2012 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |

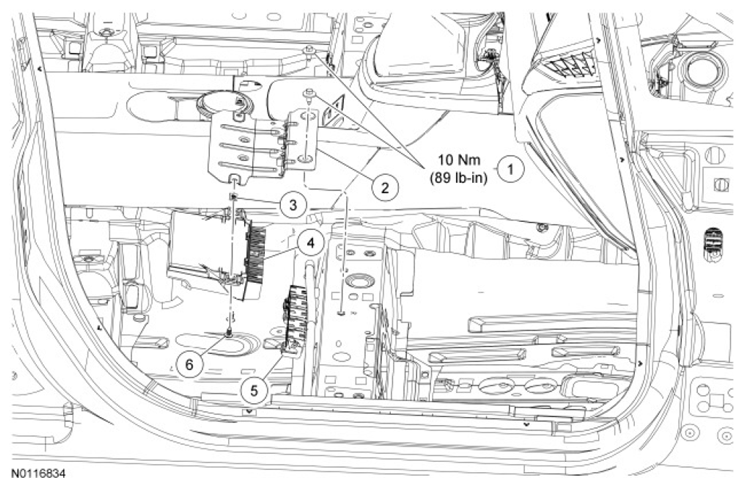

| Item | Part Number | Description |
|---|---|---|
| 1 | W503922 | Remote Function Actuator (RFA) bracket bolt (2 required) |
| 2 | - | RFA bracket |
| 3 | - | RFA module J-nut (2 required) |
| 4 | 19G481 | RFA module |
| 5 | - | RFA module electrical connectors (part of 14A005) |
| 6 | - | RFA module screw (2 required) |
