Fuel Pump Control Module: Notes

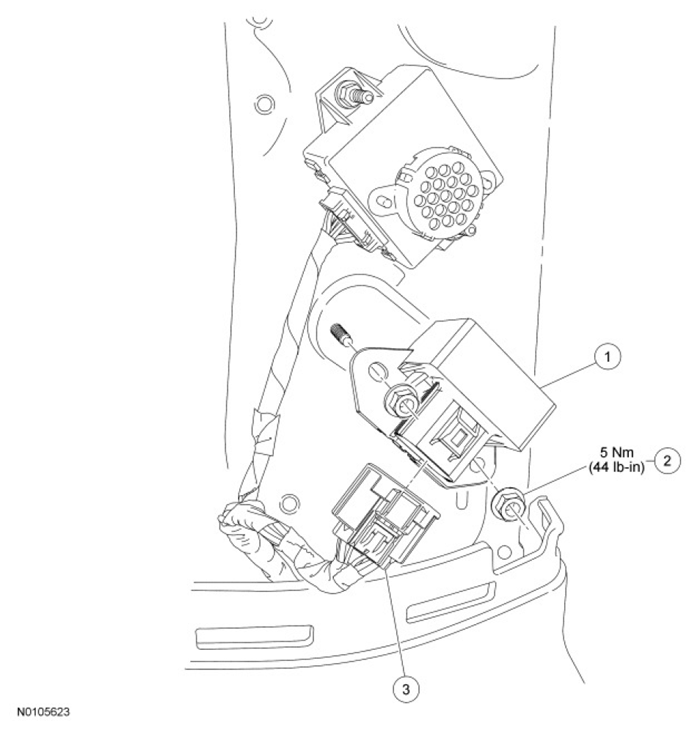

Fig 1: Locating Fuel Pump Control Module Components With Torque Specifications

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	9345	Fuel Pump (FP) control module
2	N805320	FP  control module nut (2 required)
3	14A464	FP  control module electrical connector
