Backrest, Manual
NOTE:

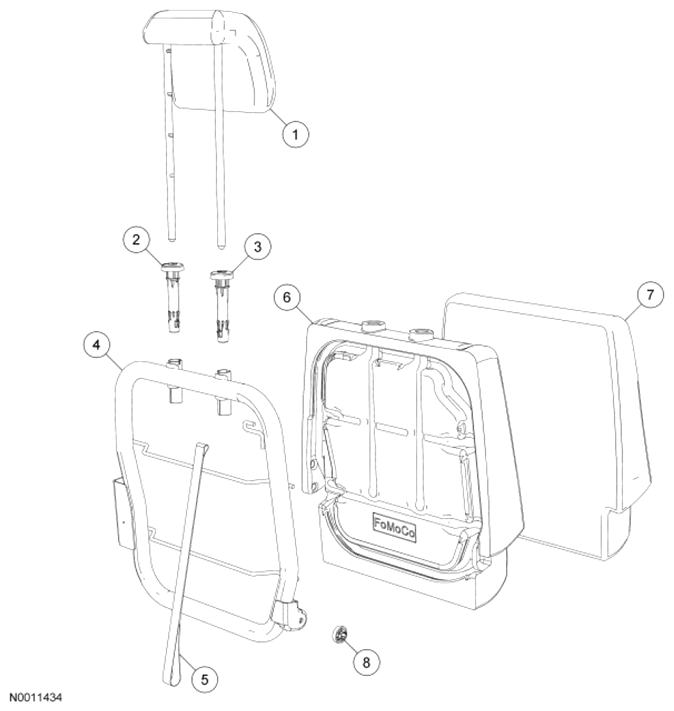

LH shown in illustration, RH similar.
THIRD ROW SEAT PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 611A08 | Head restraint assembly |
| 2 | 610A16 | Head restraint guide, master |
| 3 | 610A16 | Head restraint guide, slave |
| 4 | 613A38 RH/613A39 LH | Backrest frame |
| 5 | 600A96 | Pull strap |
| 6 | 66800 RH/66801 LH | Backrest foam pad |
| 7 | 66601 | Backrest trim cover |
| 8 | 613B44 | Bushing |
