Parking Aid Module Connector - C3267

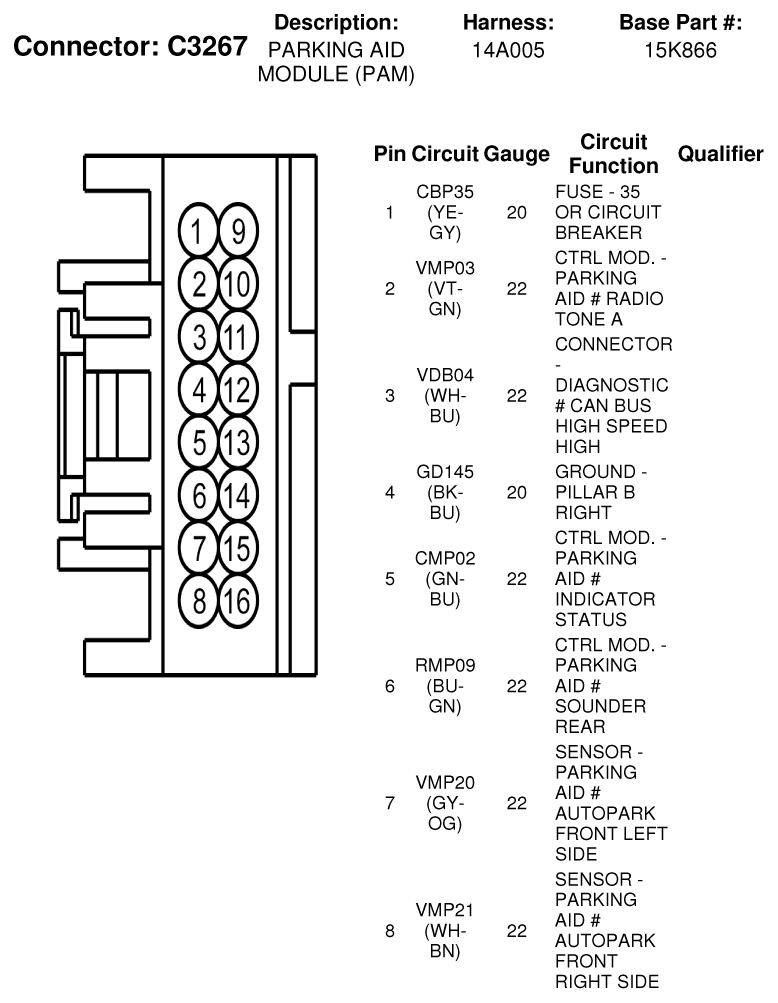

Fig 1: Parking Aid Module Connector End View (C3267) (1 Of 2)

Courtesy of FORD MOTOR CO.

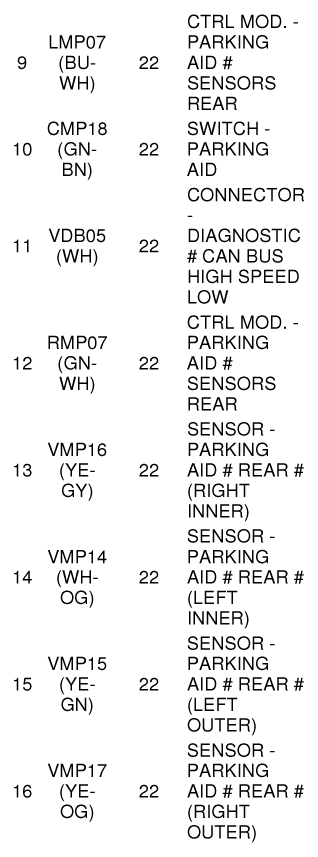

Fig 2: Parking Aid Module Connector End View (C3267) (2 Of 2)

Courtesy of FORD MOTOR CO.
