Instrument Panel Upper Section

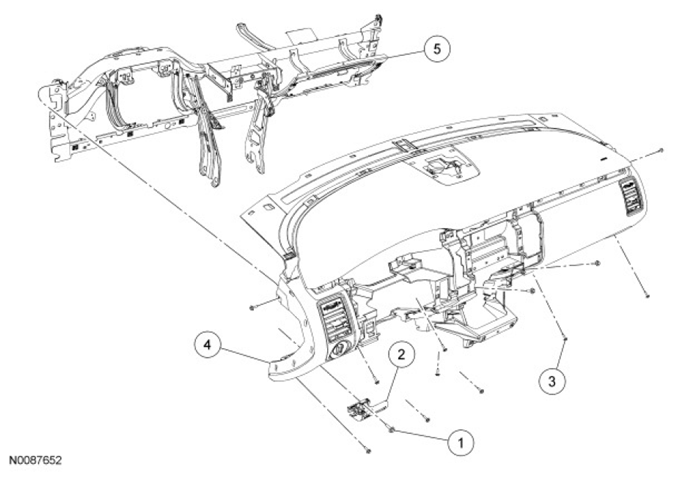

Fig 1: Exploded View Of Instrument Panel Upper Section

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	W505424	Hood release handle bolt
2	16916	Hood release handle
3	W707628	Instrument panel upper section screw (13 required)
4	04320	Instrument panel upper section
5	04545	In-vehicle crossbeam

1. For additional information, refer to the appropriate procedures in this information.
