Block Heater: Notes

NOTE: 3.5L shown in the illustration, 3.5L Gasoline Turbocharged Direct Injection (GTDI) similar.

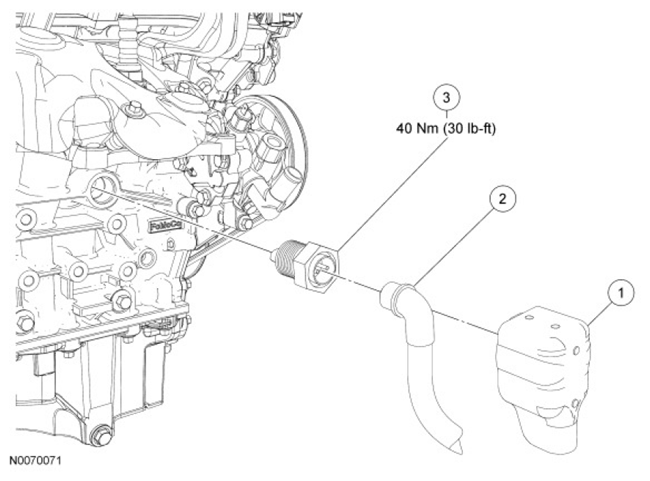

Fig 1: Exploded View Of Block Heater With Torque Specifications

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	030104	Block heater cover
2	6B018	Block heater electrical connector
3	6A051	Block heater
