Accelerator Pedal: Notes
WARNING: This page is about a different car, the 2012 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

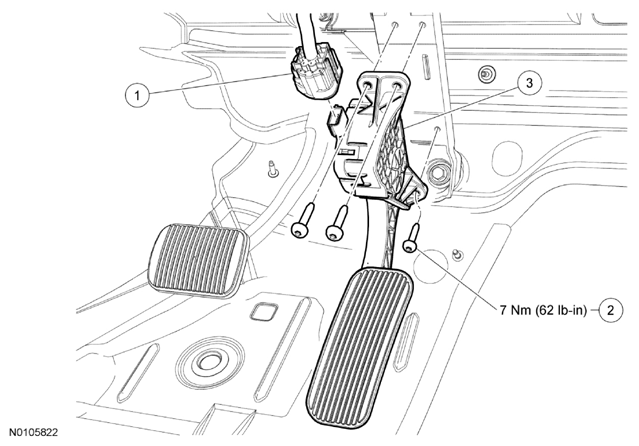

| Item |
Part Number |
Description |
| 1 |
14A464 |
Accelerator pedal sensor electrical connector |
| 2 |
W714332 |
Accelerator pedal and sensor bolt (3 required) |
| 3 |
9F836 |
Accelerator pedal and sensor assembly |
