Steering Column: Notes
WARNING: This page is about a different car, the 2012 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

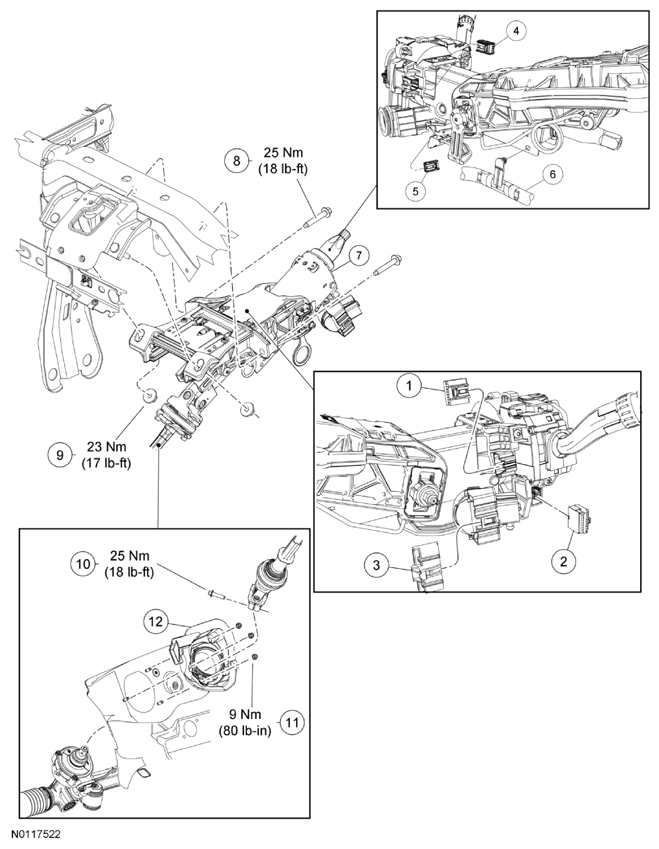

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Multifunction switch electrical connector (part of 14401) |
| 2 | - | Clockspring electrical connector (part of 14401) |
| 3 | - | Ignition switch electrical connector (part of 14401) |
| 4 | - | Steering wheel rotation sensor electrical connector (part of 14401) |
| 5 | - | Passive Anti-Theft System (PATS) transceiver electrical connector (part of 14401) |
| 6 | - | Wiring harness and pin-type retainer (part of 14401) |
| 7 | 3C529 | Steering column |
| 8 | W712833 | Steering column bolt (2 required) |
| 9 | N806432 | Steering column nut (2 required) |
| 10 | W712961 | Steering column shaft-to-steering gear bolt |
| 11 | W705460 | Steering column shaft boot nut (3 required) |
| 12 | 3C611 | Steering column shaft boot |
