Passenger Air Bag Module: Notes

WARNING: This page is about a different car, the 2012 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

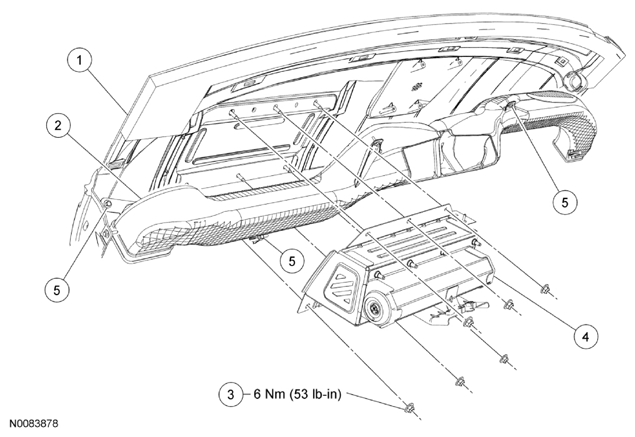

Fig 1: Exploded View Of Passenger Air Bag Module With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	04320	Instrument panel upper section
2	19B680	Air duct
3	W701152	Passenger air bag module nut (6 required)
4	044A74	Passenger air bag module
5	W707607	Air duct screws (6 required)
