Side Air Bag Module: Notes
WARNING: This page is about a different car, the 2012 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

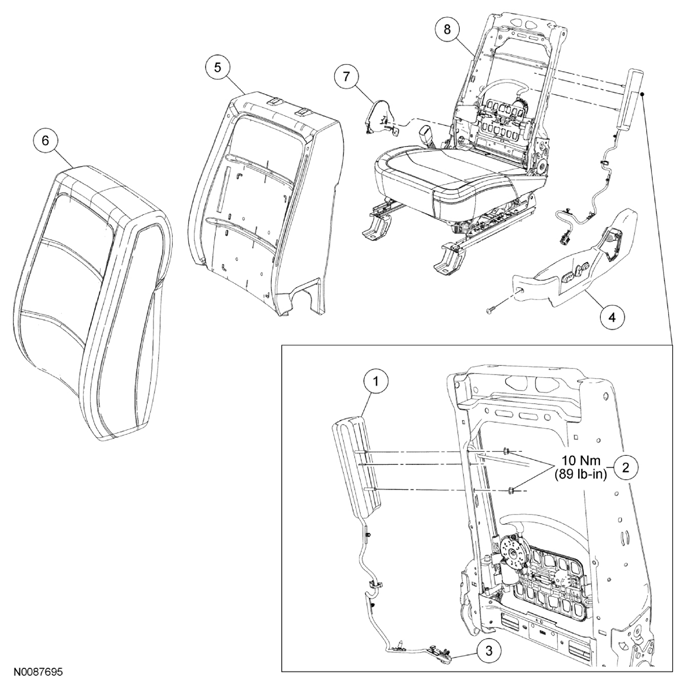

| Item | Part Number | Description |
|---|---|---|
| 1 | 611D11 | Side air bag module |
| 2 | W520111 | Side air bag module nuts (2 required) |
| 3 | - | Side air bag module electrical connector (part of 611D11) |
| 4 | 62187 | Seat cushion side shield |
| 5 | 64810 | Seat backrest foam pad |
| 6 | 64417 | Seat backrest trim cover |
| 7 | 62186 | Inboard recliner cover |
| 8 | 61019 | Seat backrest frame |
