Audio Digital Signal Processing (DSP) Module: Notes
WARNING: This page is about a different car, the 2012 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

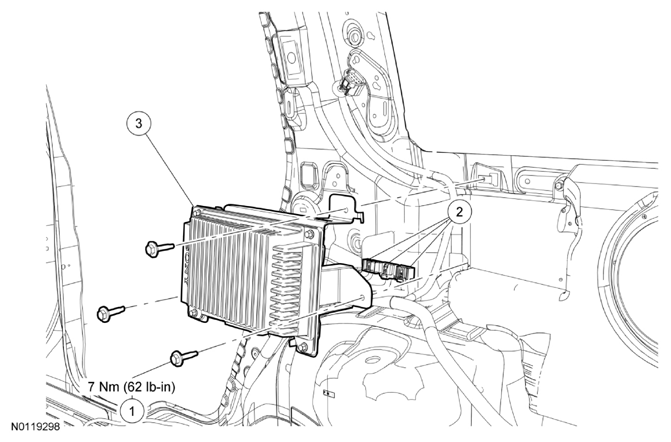

Fig 1: Audio Digital Signal Processing Module, Electrical Connector And Bolts With Torque Specification
| Item | Part Number | Description |
|---|---|---|
| 1 | W505425-S | Audio Digital Signal Processing (DSP) module bolts (3 required) |
| 2 | - | Audio DSP module electrical connectors (part of 14A005) |
| 3 | 18A849 | Audio DSP module |
